Popis produktu Kolo Mondraker FOXY CARBON R Blue/White/Orange, 2021

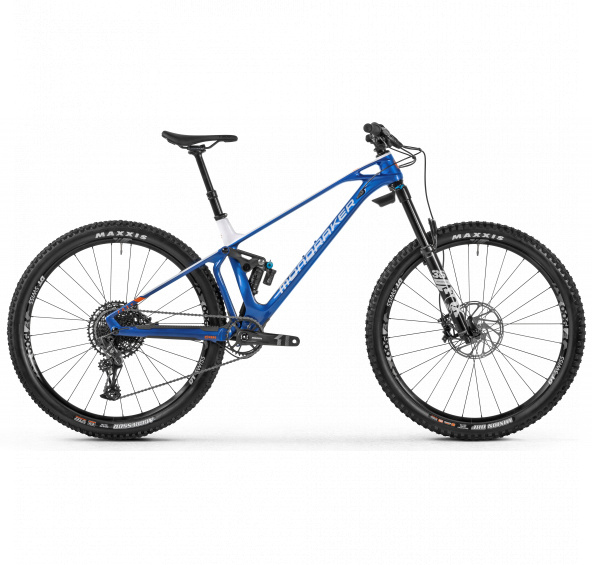

Kolo Mondraker FOXY CARBON R Blue/White/Orange, 2021
vyráběné velikosti |
S 380mm / M 420mm / L 470mm / XL 510mm
|
rám |
Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, aluminium CSC upper link with carbon bridge, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. Optional Geometry kit: steering cups: +/- 1
|
vidlice |
Fox 36 29 Float FIT GRIP EVOL Performance, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
|
hlavové složení |
Onoff Titan tapered for 1-1/8 to 1-1/2 head tube, ACB sealed bearings, top 41.8x30.5x8x45x45, bottom 51.9x40x8x45x45
|
přehazovačka |
Sram Trigger NX Eagle, 12s, X-Actuation 1:1
|
řazení |
Sram Trigger NX Eagle, 12s, X-Actuation 1:1
|
brzdové páčky |
Sram G2 R, tool-free reach adjust
|
kliky a převodníky |
Sram NX Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
|
středové složení |
Sram DUB BSA, sealed bearings, 73mm
|
řidítka |
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9 backsweep, 5 upsweep, 31.8mm barbore Onoff Desert, 1lock-on, 135mm, sizes: S/M L/XL
|
představec |
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
|
sedlovka |
Onoff Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L size: 425x150mm, XL size: 465x170mm
|
sedlo |
SDG BEL-AIR 3.0, LPU foam, steel rails
|
náboj přední |
DT 370, Boost 15x110mm, IS 6 bolts
|
náboj zadní |
DT 370, Boost 12x148mm, 3 Pawl system, IS 6 bolts
|
řetěz |
Sram NX Eagle, 12s, Powerlock
|
kazeta |
Sram XG-1230, 11-50T, 12s
|
dráty |
DT Champion, straightpull
|
ráfky |
DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes
|
pláště |
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
|
tlumič |
Fox Float DPX2 LV EVOL Performance, 205x62.5mm. Settings: compression 3 positions lever, low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
|
přední brzda |
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
|
zadní brzda |
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
|
plášť zadní |
Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
|
nastavení tlumiče |
Light compression, extralight rebound, air volume spacer 0.6
|
převodník |
32T, steel, X-Sync 2
|
patka k přehazovačce | Mondraker M068 |
