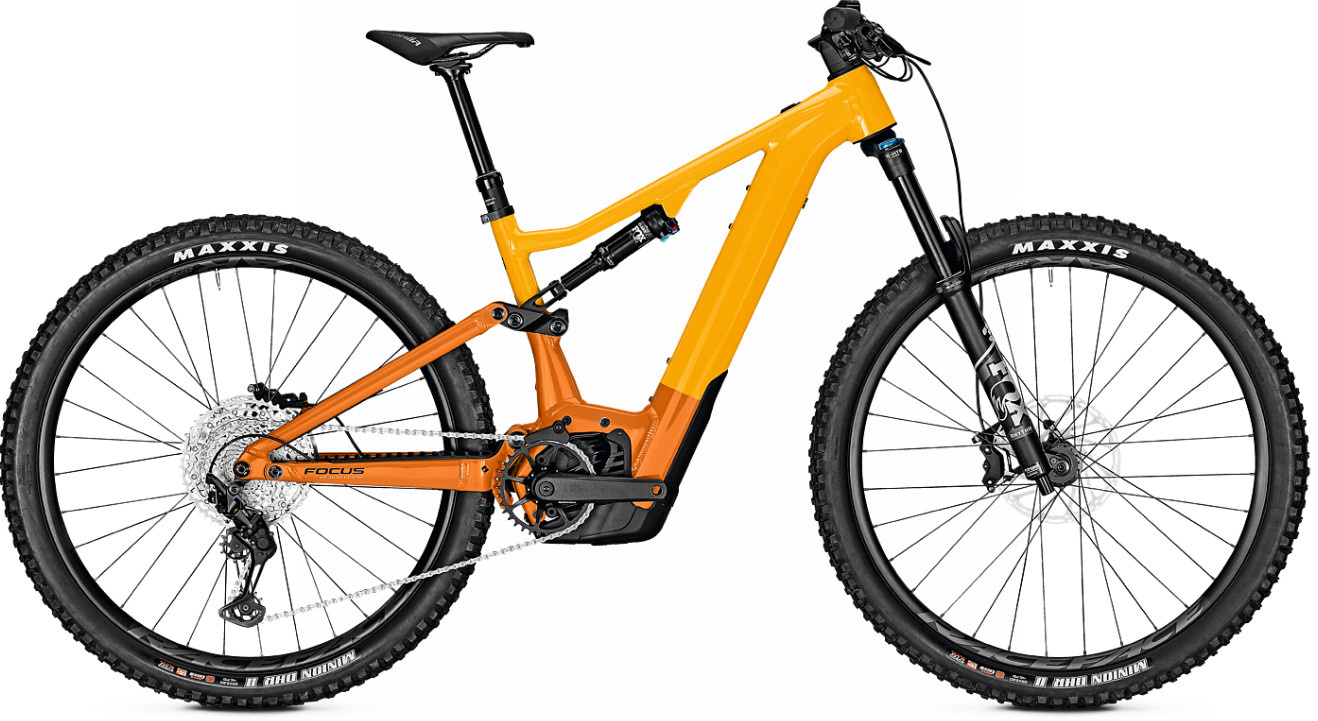

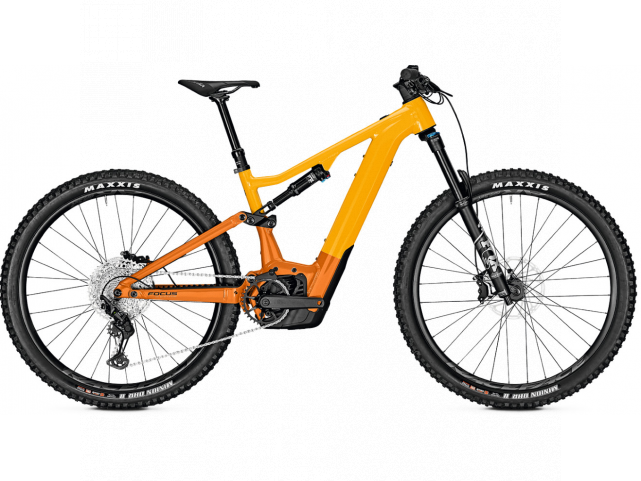

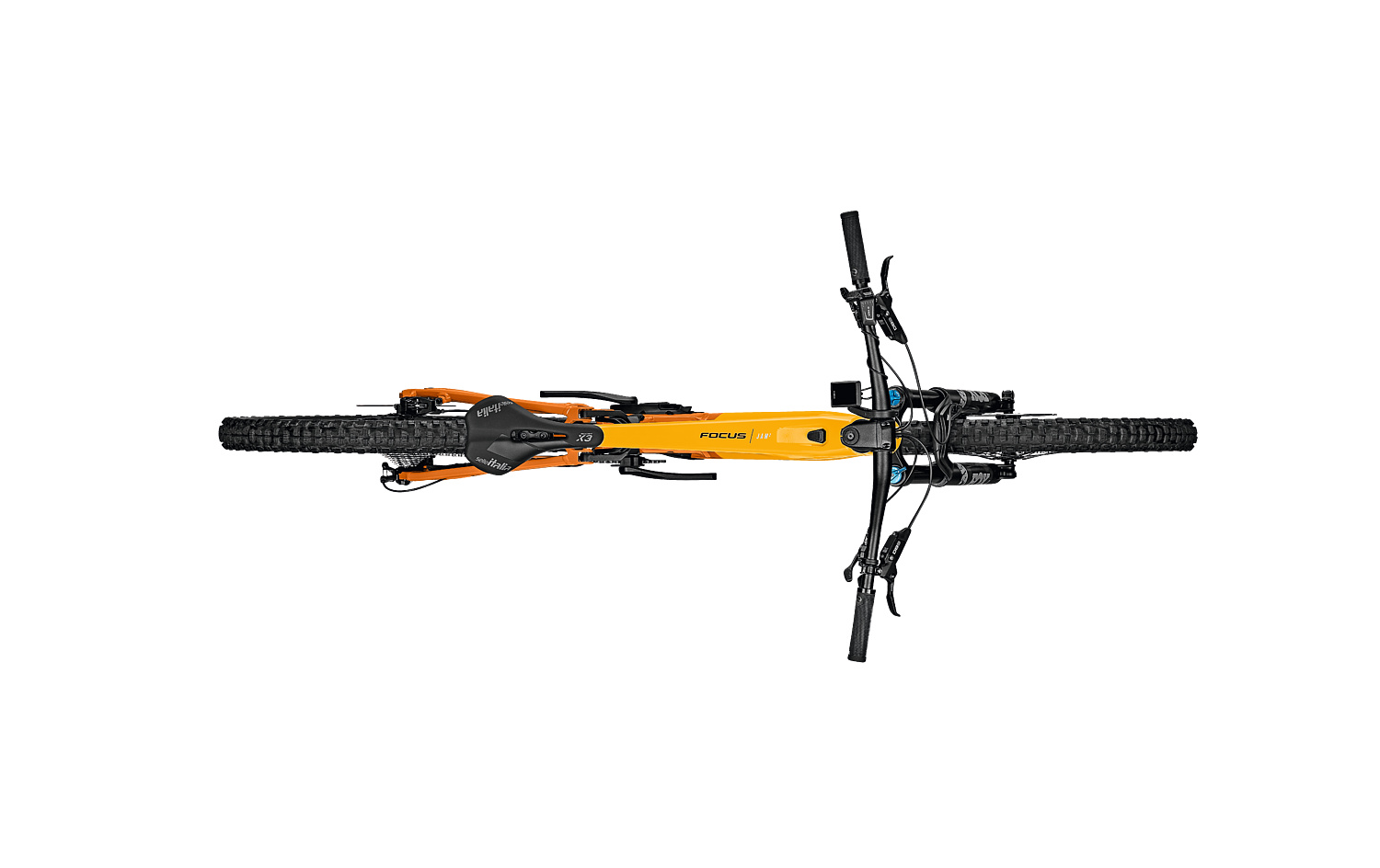

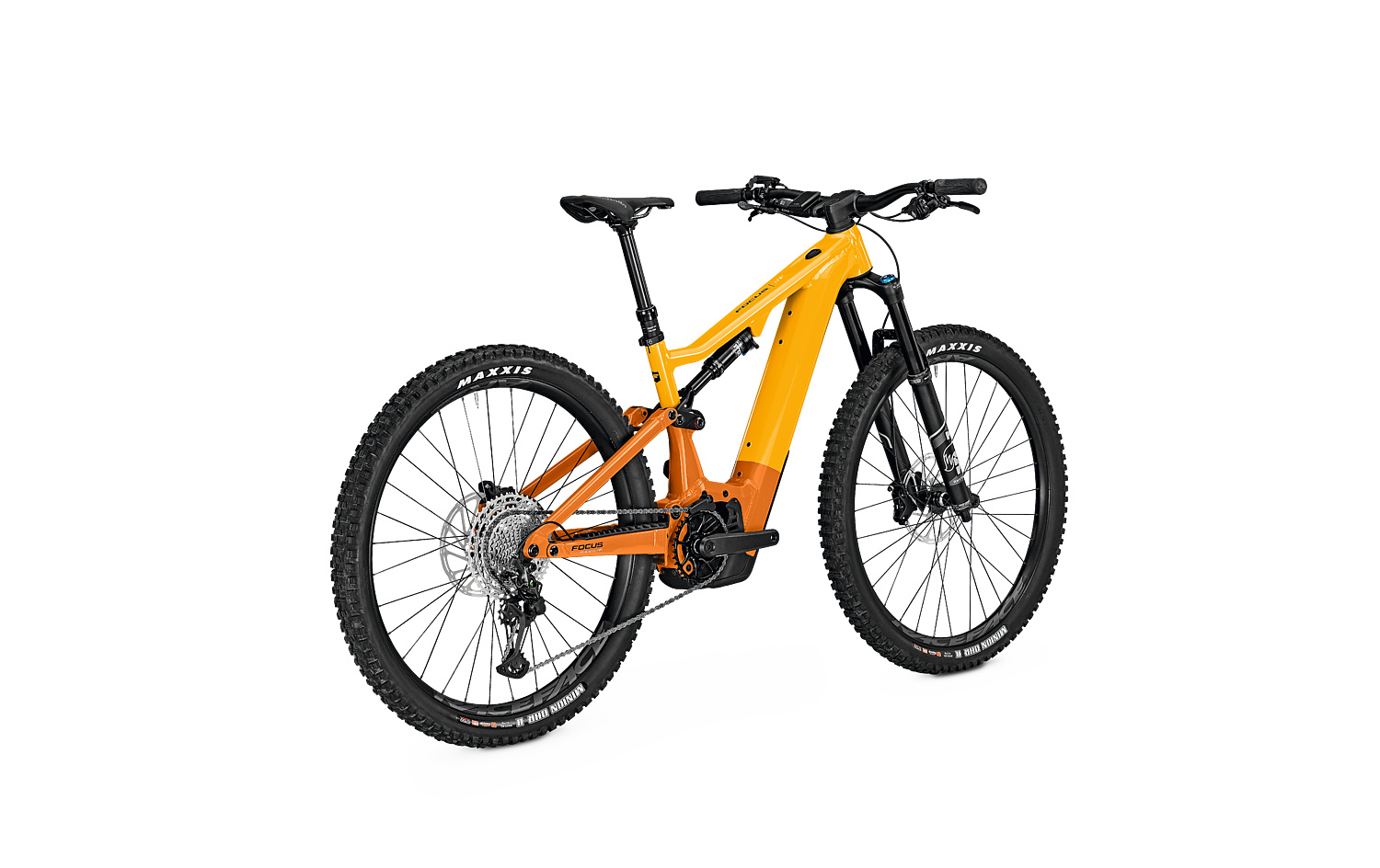

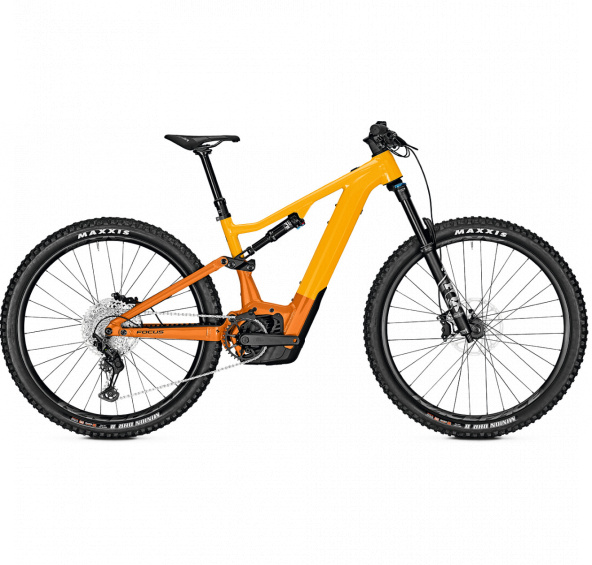

Elektrokolo Focus JAM2 6.8 Yellow Orange, 2023

Elektrokolo Focus JAM² 6.8 Yellow Orange, 2023

• Brake
  • 203
• Pedal
  • MTB, with reflector
• Frame size
  • S,M,L,XL
  • 39,42,44,46
• Drive train
  • Chain
• Max total weight
  • 150 kg
• Frame
  • 7005 hydroformed aluminium, 3D forging, 150 mm F.O.L.D. kinematics, 148x12 mm thru axle, internal cable routing, post mount 203 mm
• Fork
  • FOX 36 Float Rhythm 29 E-Bike, Grip, 110 x 15 mm, 44 mm rake
• Handlebar
  • Aluminium, 800 mm, rise: 30 mm, backsweep: 9°
• Saddle
  • Selle Italia X3
• Seat post
  • Post Moderne dropper post PM-214, 34.9 mm
• Stem
  • FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium
• Brakes
  • Shimano MT520, hydraulic disc brake
• Crank set
  • Samox EC40 ISIS
• Sprocket
  • Shimano Deore CS-M6100, 12-speed
• Transmission
  • front: 36, rear: 10-51
• Wheel rims
  • RaceFace AR30 Offset
• Brake lever
  • SRAM DB8, 4-piston, hydraulic disc brake
• Battery
  • 750 Wh
• Color
  • Mustardyellow / Rustorange
  • Stoneblue / Slategrey
• Travel
  • 160 mm
  • 150 mm
• Hub
  • Novatec D041, 15x110 mm
  • Novatec D462, 12x148 mm
• Grip
  • Herrmans DD 41B
• Rear derailleur
  • Shimano Deore XT M8100, 12-speed
• Tire
  • Maxxis Minion DHR II, 2.6, 66-622, EXO+
• Bottom bracket
  • Integrated in Drive Unit
• Shift/brake lever
  • SRAM DB8, 4-piston, hydraulic disc brake
  • Shimano Deore XT SL-M8100, 12-speed
• Spoke
  • Niro, black
• Chain
  • Shimano Deore CN-M6100, 12-speed
