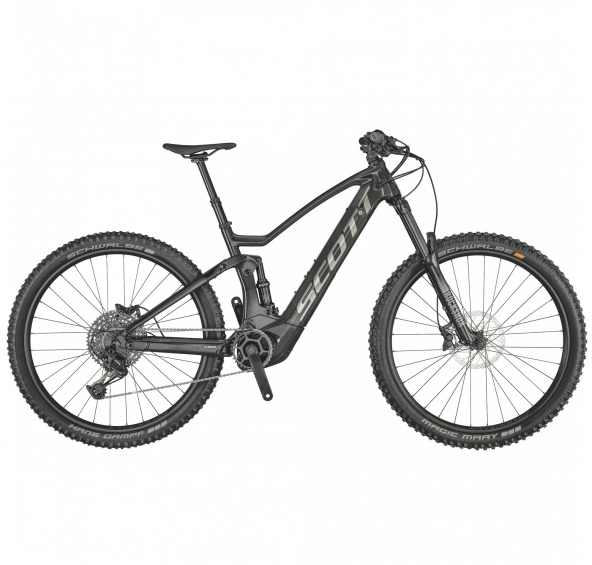

Popis produktu HORSKÉ ELEKTROKOLO SCOTT GENIUS eRIDE 900 2021
- Seznamte se s elektrokolem Genius eRIDE 900. V avantgardním designu, s nejvytříbenějšími technologiemi, plně integrovaný a s nejvyspělejší baterií klade Genius eRIDE 900 Tuned důraz na zážitek z jízdy. Je to ideální volba pro jezdce, kteří chtějí jistotu, i když jim terén pod koly ztěžkne.
condition of usage 4Example All mountain, trail
Please check the detail for more information -
FRAME
Carbon Main Frame / Alloy swingarm
Virtual 4 link kinematic VLK
27.5" and 29" compatible / geo adj. / Boost 148x12mm
150mm travel / Bosch Gen4 / Integr. removable Battery
Tapered Headtube E2/Forkstop, Central Kickstand Mount
Range Booster Ready -
TRAVEL
Front: 160mm / Rear: 150mm -
FORK
RockShox 35 Silver TK Air
15x110mm QR axle / Tapered Steerer
Reb. Adj. / 2 Modes / Lockout / 160mm travel / E-Bike -
REAR SHOCK
FOX Float EVOL Performace Trunnion
3 modes / Lockout-Trail-Descend
DPS / Reb. Adj.
Travel 150mm / 185x55mm
-
REMOTE SYSTEM
SCOTT TwinLoc Suspension System
3 modes front and rear / integ. Grip clamp -
DRIVE UNIT
Bosch Performance CX
EU: 25kmh / US: 20mph -
BATTERY
PowerTube 625Wh -
DISPLAY
Bosch Purion -
CHARGER
4A Charger -
REAR DERAILLEUR
SRAM SX Eagle / 12 Speed -
SHIFTERS
SRAM SX Eagle Single Click -
CRANKSET
FSA CK-745 165mm / 34T -
CHAINGUIDE
SCOTT Custom -
CHAINRING
SRAM Eagle 34T DM / Steel -
CHAIN
SRAM SX Eagle -
CASSETTE
SRAM PG1210 / 11-50 T -
BRAKES
Shimano BR-MT420 4 Piston -
ROTOR
Front: SM-RT30 CL 203mm / Rear: RT-EM300 CL 203mm -
HANDLEBAR
Syncros Hixon 2.0 / Alloy 6061D.B.
12mm rise / 9° / 780mm
Syncros Pro lock-on grips -
H'STEM
Syncros FL2.0 / 6061 Alloy
L-Shape Spacer & Top Cap / 31.8mm / 6° / 1 1/8" -
SEATPOST
Syncros Duncan Dropper Post 2.5
31.6mm / S size 100mm / M 125mm / L size 150mm / XL 170mm -
SEAT
Syncros Tofino 2.5 Regular -
HEADSET
Acros Blocklock / Tapered 1.5"-1 1/8"
OD 52/62mm / ID 44/56mm -
HUB (FRONT)
Formula CL-811 / 15x110mm -
HUB (REAR)
Formula CL-148S / Boost 148x12mm -
SPOKES
Stainless Black -
RIMS
Syncros MD30 / 32H / 30mm / Pin Joint
Tubeless ready -
FRONT TIRE
Schwalbe MagicMary 29x2.6"
Snake Skin / TL-Easy / SuperTrail / Addix Soft -
REAR TIRE
Schwalbe Hans Dampf 29x2.6"
Snake Skin / TL-Easy / SuperTrail / Addix Speedgrip -
LIGHTS
Bosch Light Cable pre-installed F&R -
APPROX WEIGHTS IN KG
23.80 -
APPROX WEIGHTS IN LBS
52.47 -
MAX. SYSTEM WEIGHT
128 kg
Celková hmotnost zahrnuje kolo
jezdec
vybavení
a případná další zavazadla
| S / 900 | S / 700 | M / 900 | M / 700 | L / 900 | L / 700 | XL / 900 | XL / 700 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LOW BB Setting | HIGH BB Setting | LOW BB Setting | HIGH BB Setting | LOW BB Setting | HIGH BB Setting | LOW BB Setting | HIGH BB Setting | ||||||||||||
| A | HEAD TUBE ANGLE | 64.8 ° | 65.4 ° | 64.8 ° | 65.4 ° | 65.0 ° | 65.6 ° | 65.0 ° | 65.6 ° | ||||||||||
| B | HEAD TUBE LENGTH | 120.0 MM | 120.0 MM | 125.0 MM | 125.0 MM | 135.0 MM | 135.0 MM | 145.0 MM | 145.0 MM | ||||||||||
| C | TOP TUBE HORIZONTAL | 585.0 MM | 583.4 MM | 605.0 MM | 603.4 MM | 635.0 MM | 633.3 MM | 665.0 MM | 663.3 MM | ||||||||||
| D | STANDOVER HEIGHT | 762.4 MM | 748.8 MM | 766.6 MM | 753.3 MM | 798.1 MM | 785.4 MM | 809.8 MM | 797.4 MM | ||||||||||
| E | BB OFFSET | -30.0 MM | -22.1 MM | -30.0 MM | -22.1 MM | -30.0 MM | -22.0 MM | -30.0 MM | -21.9 MM | ||||||||||
| F | BB HEIGHT | 347.0 MM | 337.9 MM | 347.0 MM | 337.9 MM | 347.0 MM | 338.0 MM | 347.0 MM | 338.1 MM | ||||||||||
| G | WHEEL BASE | 1,215.2 MM | 1,213.7 MM | 1,236.1 MM | 1,234.6 MM | 1,258.4 MM | 1,256.9 MM | 1,290.2 MM | 1,288.7 MM | ||||||||||
| H | BB CENTER TO TOPTUBE CENTER | ||||||||||||||||||
| I | BB CENTER TO TOP OF SEATTUBE | 410.0 MM | 410.0 MM | 440.0 MM | 440.0 MM | 490.0 MM | 490.0 MM | 540.0 MM | 540.0 MM | ||||||||||
| J | SEAT ANGLE | 75.4 ° | 76.0 ° | 75.4 ° | 76.0 ° | 74.8 ° | 75.4 ° | 74.8 ° | 75.4 ° | ||||||||||
| K | CHAINSTAY | 465.0 MM | 462.8 MM | 465.0 MM | 462.8 MM | 465.0 MM | 462.8 MM | 465.0 MM | 462.8 MM | ||||||||||
| L | REACH | 421.8 MM | 428.3 MM | 440.6 MM | 447.1 MM | 460.7 MM | 467.2 MM | 488.3 MM | 494.7 MM | ||||||||||
| M | STACK | 626.6 MM | 622.2 MM | 631.2 MM | 626.6 MM | 641.4 MM | 636.7 MM | 650.4 MM | 645.6 MM | ||||||||||
| N | STEM LENGTH | 50.0 MM | 50.0 MM | 50.0 MM | 50.0 MM | 60.0 MM | 60.0 MM | 70.0 MM | 70.0 MM | ||||||||||
| 0 | TRAIL | 128.8 MM | 120.2 MM | 128.8 MM | 120.2 MM | 127.2 MM | 118.8 MM | 127.2 MM | 118.8 MM | ||||||||||
