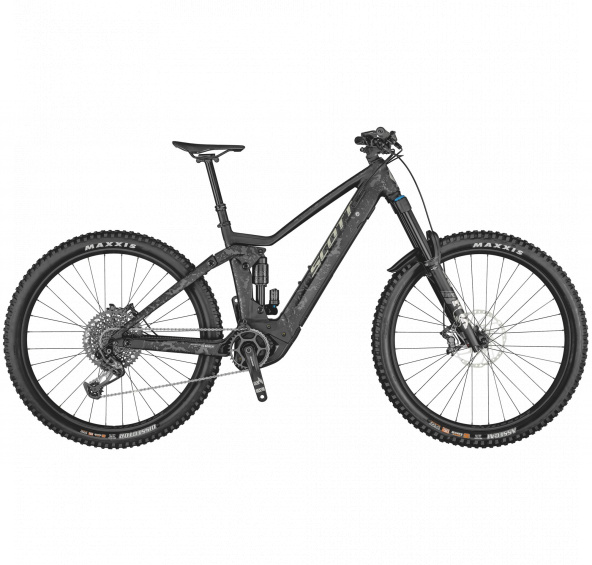

Popis produktu HORSKÉ ELEKTROKOLO SCOTT RANSOM eRIDE 910 2021
- Ransom vyhrál téměř každý test, kterého se účastnil. Mohli jsme udělat jen jednu věc, aby se stal ještě všestrannějším - elektrickou verzi. Ransom eRIDE - náročnější stoupání, delší sjezdy, radostnější pokřik, zkrátka ransomovatější.
condition of usage 4Example All mountain, trail
Please check the detail for more information -
FRAME
Alloy Frame / Virtual 4 link kinematic VLK
27.5" and 29" compatible / geo adj. / Boost 148x12mm
180mm travel / Bosch Gen4 / Integr. removable Battery
Tapered Headtube E2, Central Kickstand Mount -
TRAVEL
Front: 180mm / Rear: 180mm -
FORK
FOX 38 Performance Elite / Air / eMTB+
FIT Grip 2 / LSC-HSC / LSR-HSR / 15x110mm QR axle
tapered steerer / Reb. Adj. / 180mm travel
FOX fork fender -
REAR SHOCK
FOX Float X2 Performance / Air
LSC, LSR w/2-Pos. lever
-
DRIVE UNIT
Bosch Performance CX
EU: 25kmh / US: 20mph -
BATTERY
PowerTube 625Wh -
DISPLAY
Bosch Purion -
CHARGER
4A Charger -
REAR DERAILLEUR
SRAM X01 Eagle / 12 Speed -
SHIFTERS
SRAM NX Eagle Single Click -
CRANKSET
SRAM X1 1000 / 165mm / 34T -
CHAINGUIDE
SCOTT Custom -
CHAINRING
SRAM Eagle 34T DM / Steel -
CHAIN
SRAM NX Eagle -
CASSETTE
SRAM XG1275 / 10-52 T -
BRAKES
Shimano XT / BR-M8120 4 Piston -
ROTOR
Front: SM-RT64 CL 203mm / Rear: RT-EM600 CL 203mm -
HANDLEBAR
Syncros Hixon 1.5 Rise / Alloy 2014D.B.
20mm rise / 8° / 800mm
Syncros Pro lock-on grips -
H'STEM
Syncros XM1.5 / Alloy 6061
integrated Spacer & Top Cap / 31.8mm / 0° / 1 1/8" -
SEATPOST
FOX Transfer Dropper Post
31.6mm / S size 125mm / M size 150mm / L&XL size 175mm -
SEAT
Syncros Tofino 1.5 Regular
Titanium rails -
HEADSET
Acros Blocklock / Tapered 1.5"-1 1/8"
OD 52/62mm / ID 44/56mm -
HUB (FRONT)
Formula CL-811 / 15x110mm -
HUB (REAR)
Formula ECT-1481 / Boost 148x12mm -
SPOKES
Stainless Black -
RIMS
Syncros X-30S / 32H / 30mm / Sleeve Joint
Tubeless ready -
FRONT TIRE
Maxxis Assegai 29x2.6"
120TPI Kevlar Bead
EXO+ / TR Tubeless ready
3C Maxx Terra -
REAR TIRE
Maxxis Dissector 29x2.6"
120TPI Kevlar Bead
EXO+ / TR Tubeless ready
3C Maxx Terra -
LIGHTS
Bosch Light Cable pre-installed F&R -
EXTRAS
FOX Fork Fender -
MAX. SYSTEM WEIGHT
128 kg
Celková hmotnost zahrnuje kolo
jezdec
vybavení
a případná další zavazadla
Celková hmotnost zahrnuje kolo
jezdec
vybavení
a případná další zavazadla
-

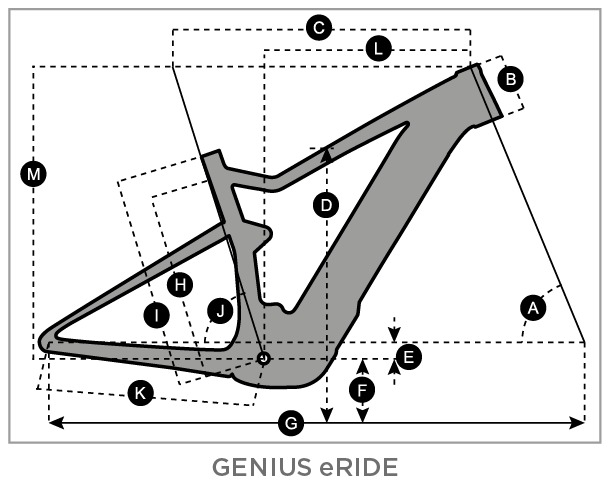

S / 900 S / 700 M / 900 M / 700 L / 900 L / 700 XL / 900 XL / 700 LOW BB Setting HIGH BB Setting LOW BB Setting HIGH BB Setting LOW BB Setting HIGH BB Setting LOW BB Setting HIGH BB Setting A HEAD TUBE ANGLE 64.0 ° 64.6 ° 64.0 ° 64.6 ° 64.0 ° 64.6 ° 64.0 ° 64.6 ° B HEAD TUBE LENGTH 120.0 MM 120.0 MM 120.0 MM 120.0 MM 125.0 MM 125.0 MM 125.0 MM 125.0 MM C TOP TUBE HORIZONTAL 569.5 MM 568.0 MM 597.0 MM 595.5 MM 630.5 MM 628.8 MM 662.5 MM 660.7 MM D STANDOVER HEIGHT 753.0 MM 762.0 MM 758.0 MM 766.0 MM 780.0 MM 790.0 MM 790.0 MM 800.0 MM E BB OFFSET -13.0 MM -22.0 MM -13.0 MM -22.0 MM -13.0 MM -22.0 MM -13.0 MM -22.0 MM F BB HEIGHT 348.5 MM 353.5 MM 348.5 MM 353.5 MM 348.5 MM 353.5 MM 348.5 MM 353.5 MM G WHEEL BASE 1,228.4 MM 1,230.3 MM 1,253.4 MM 1,255.3 MM 1,285.6 MM 1,287.5 MM 1,315.6 MM 1,317.5 MM H BB CENTER TO TOPTUBE CENTER I BB CENTER TO TOP OF SEATTUBE 420.0 MM 420.0 MM 440.0 MM 440.0 MM 470.0 MM 470.0 MM 500.0 MM 500.0 MM J SEAT ANGLE 77.2 ° 76.5 ° 77.0 ° 76.3 ° 76.8 ° 76.1 ° 76.6 ° 75.9 ° K CHAINSTAY 462.9 MM 465.0 MM 462.9 MM 465.0 MM 462.9 MM 465.0 MM 462.9 MM 465.0 MM L REACH 422.3 MM 415.0 MM 447.3 MM 440.0 MM 477.4 MM 470.0 MM 507.3 MM 500.0 MM M STACK 639.7 MM 644.4 MM 639.7 MM 644.4 MM 643.5 MM 649.0 MM 643.5 MM 649.0 MM N STEM LENGTH 50.0 MM 50.0 MM 50.0 MM 50.0 MM 50.0 MM 50.0 MM 50.0 MM 50.0 MM 0 TRAIL 125.4 MM 136.4 MM 125.4 MM 136.4 MM 125.4 MM 136.4 MM 125.4 MM 136.4 MM
