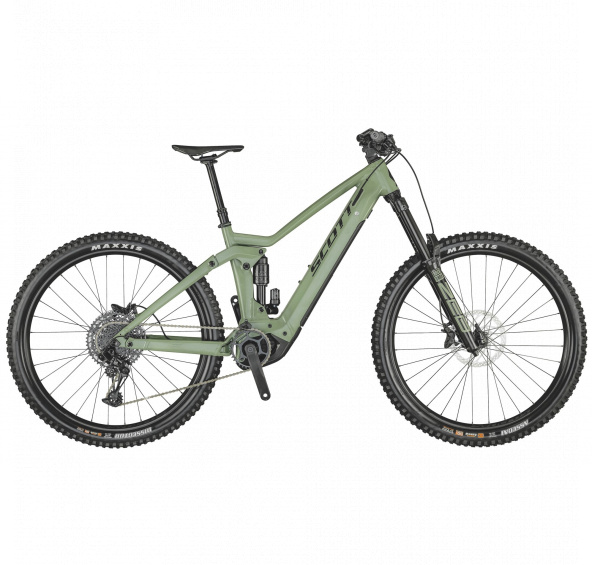

Popis produktu HORSKÉ ELEKTROKOLO SCOTT RANSOM eRIDE 920 2021
- Ransom vyhrál téměř každý test, kterého se účastnil. Mohli jsme udělat jen jednu věc, aby se stal ještě všestrannějším - elektrickou verzi. Ransom eRIDE - náročnější stoupání, delší sjezdy, radostnější pokřik, zkrátka ransomovatější.
condition of usage 4Example All mountain, trail
Please check the detail for more information -
FRAME
Alloy Frame / Virtual 4 link kinematic VLK
27.5" and 29" compatible / geo adj. / Boost 148x12mm
180mm travel / Bosch Gen4 / Integr. removable Battery
Tapered Headtube E2, Central Kickstand Mount -
TRAVEL
Front: 180mm / Rear: 180mm -
FORK
RockShox ZEB / Air
15x110mm QR axle
tapered steerer / Reb. Adj. / 180mm travel -
REAR SHOCK
FOX Float X2 Performance / Air
LSC, LSR w/2-Pos. lever
-
DRIVE UNIT
Bosch Performance CX
EU: 25kmh / US: 20mph -
BATTERY
PowerTube 625Wh -
DISPLAY
Bosch Purion -
CHARGER
4A Charger -
REAR DERAILLEUR
SRAM NX Eagle / 12 Speed -
SHIFTERS
SRAM SX Eagle Single Click -
CRANKSET
FSA CK-745 165mm / 34T -
CHAINGUIDE
SCOTT Custom -
CHAINRING
SRAM Eagle 34T DM / Steel -
CHAIN
SRAM SX Eagle -
CASSETTE
SRAM PG1210 / 11-50 T -
BRAKES
Shimano BR-MT520 4 Piston -
ROTOR
Front: SM-RT30 CL 203mm / Rear: RT-EM300 CL 203mm -
HANDLEBAR
Syncros Hixon 2.0 Rise / Alloy 6061D.B.
20mm rise / 8° / 800mm
Syncros Pro lock-on grips -
H'STEM
Syncros XM1.5 / Alloy 6061
integrated Spacer & Top Cap / 31.8mm / 0° / 1 1/8" -
SEATPOST
Syncros Duncan Dropper Post 2.5
31.6mm / S size 125mm / M size 150mm / L & XL size 170mm -
SEAT
Syncros Tofino 2.0 Regular
CRMO rails -
HEADSET
Acros Blocklock / Tapered 1.5"-1 1/8"
OD 52/62mm / ID 44/56mm -
HUB (FRONT)
Formula CL-811 / 15x110mm -
HUB (REAR)
Formula CL-148S / Boost 148x12mm -
SPOKES
Stainless Black -
RIMS
Syncros MD30 / 32H / 30mm / Pin Joint
Tubeless ready -
FRONT TIRE
Maxxis Assegai 29x2.6"
120TPI Kevlar Bead
EXO+ / TR Tubeless ready
3C Maxx Terra -
REAR TIRE
Maxxis Dissector 29x2.6"
120TPI Kevlar Bead
EXO+ / TR Tubeless ready
3C Maxx Terra -
LIGHTS
Bosch Light Cable pre-installed F&R -
EXTRAS
RockShox Fork Fender -
APPROX WEIGHTS IN KG
24.70 -
APPROX WEIGHTS IN LBS
54.45 -
MAX. SYSTEM WEIGHT
128 kg
Celková hmotnost zahrnuje kolo
jezdec
vybavení
a případná další zavazadla
| S / 900 | S / 700 | M / 900 | M / 700 | L / 900 | L / 700 | XL / 900 | XL / 700 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LOW BB Setting | HIGH BB Setting | LOW BB Setting | HIGH BB Setting | LOW BB Setting | HIGH BB Setting | LOW BB Setting | HIGH BB Setting | ||||||||||||
| A | HEAD TUBE ANGLE | 64.0 ° | 64.6 ° | 64.0 ° | 64.6 ° | 64.0 ° | 64.6 ° | 64.0 ° | 64.6 ° | ||||||||||
| B | HEAD TUBE LENGTH | 120.0 MM | 120.0 MM | 120.0 MM | 120.0 MM | 125.0 MM | 125.0 MM | 125.0 MM | 125.0 MM | ||||||||||
| C | TOP TUBE HORIZONTAL | 569.5 MM | 568.0 MM | 597.0 MM | 595.5 MM | 630.5 MM | 628.8 MM | 662.5 MM | 660.7 MM | ||||||||||
| D | STANDOVER HEIGHT | 753.0 MM | 762.0 MM | 758.0 MM | 766.0 MM | 780.0 MM | 790.0 MM | 790.0 MM | 800.0 MM | ||||||||||
| E | BB OFFSET | -13.0 MM | -22.0 MM | -13.0 MM | -22.0 MM | -13.0 MM | -22.0 MM | -13.0 MM | -22.0 MM | ||||||||||
| F | BB HEIGHT | 348.5 MM | 353.5 MM | 348.5 MM | 353.5 MM | 348.5 MM | 353.5 MM | 348.5 MM | 353.5 MM | ||||||||||
| G | WHEEL BASE | 1,228.4 MM | 1,230.3 MM | 1,253.4 MM | 1,255.3 MM | 1,285.6 MM | 1,287.5 MM | 1,315.6 MM | 1,317.5 MM | ||||||||||
| H | BB CENTER TO TOPTUBE CENTER | ||||||||||||||||||
| I | BB CENTER TO TOP OF SEATTUBE | 420.0 MM | 420.0 MM | 440.0 MM | 440.0 MM | 470.0 MM | 470.0 MM | 500.0 MM | 500.0 MM | ||||||||||
| J | SEAT ANGLE | 77.2 ° | 76.5 ° | 77.0 ° | 76.3 ° | 76.8 ° | 76.1 ° | 76.6 ° | 75.9 ° | ||||||||||
| K | CHAINSTAY | 462.9 MM | 465.0 MM | 462.9 MM | 465.0 MM | 462.9 MM | 465.0 MM | 462.9 MM | 465.0 MM | ||||||||||
| L | REACH | 422.3 MM | 415.0 MM | 447.3 MM | 440.0 MM | 477.4 MM | 470.0 MM | 507.3 MM | 500.0 MM | ||||||||||
| M | STACK | 639.7 MM | 644.4 MM | 639.7 MM | 644.4 MM | 643.5 MM | 649.0 MM | 643.5 MM | 649.0 MM | ||||||||||
| N | STEM LENGTH | 50.0 MM | 50.0 MM | 50.0 MM | 50.0 MM | 50.0 MM | 50.0 MM | 50.0 MM | 50.0 MM | ||||||||||
| 0 | TRAIL | 125.4 MM | 136.4 MM | 125.4 MM | 136.4 MM | 125.4 MM | 136.4 MM | 125.4 MM | 136.4 MM | ||||||||||
