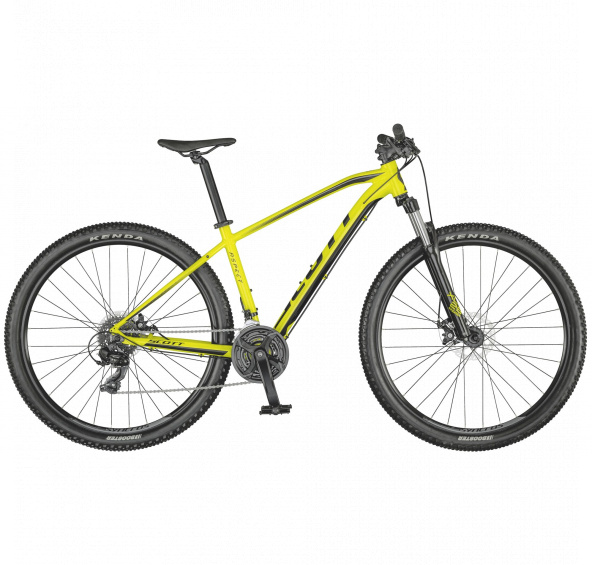

Popis produktu HORSKÉ KOLO SCOTT ASPECT 770 YELLOW 2021
- Lehký, výkonný a cenově velice zajímavý model horského kola SCOTT Aspect 770 s pevným rámem. V úpravě s diskovými brzdami a komponenty Syncros se jedná o vynikající kolo pro začínající terénní jezdce.
condition of usage 3Example Cross country and marathon
Please check the detail for more information -
FRAME
Aspect 900-700 series / Alloy 6061 Custom Tubing
BSA73 / Internal Cable Routing / replaceable hanger -
FORK
Suntour XCE28
100mm travel -
REAR DERAILLEUR
Shimano Tourney RD-TY300
21 Speed -
FRONT DERAILLEUR
MicroShift FD-M20 / 31.8mm
-
SHIFTERS
Shimano ST-EF-41-L / 7R
EZ-fire plus w/gear indicator -
CRANKSET
Prowheel TA-CQ01
42x34x24 w/CG -
BB-SET
Feimin FP.B902
BB73 / square taper -
CHAIN
KMC Z-7 -
CASSETTE
Sunrace CSM40 7AV / 11-34T -
BRAKES
Tektro SCM-02 Mech. Disc -
ROTOR
Tektro / 6 bolt / F&R 160mm -
HANDLEBAR
HL MTB-AL-312BT / 720mm / black / 12mm rise
Sncros Pro Grip -
H'STEM
TDS-C301-8FOV / 10° / 31.8 / Black -
SEATPOST
HL SP C207
31.6mm / 350mm / Black -
SEAT
Syncros 3.0 -
HEADSET
Syncros OE Press Fit / 1 1/8"
OD 50mm / ID 44mm -
HUB (FRONT)
Formula DC-19 FQR Disc -
HUB (REAR)
Formula DC-27A 7s RQR Disc -
SPOKES
14 G / stainless / black -
RIMS
Syncros X-20 Disc
32H / black -
FRONT TIRE
Kenda Booster
2.4" / 30TPI -
REAR TIRE
Kenda Booster
2.4" / 30TPI -
PEDALS
Feimin FP-803 -
APPROX WEIGHTS IN KG
14.85 -
APPROX WEIGHTS IN LBS
32.74 -
MAX. SYSTEM WEIGHT
128 kg
Celková hmotnost zahrnuje kolo
jezdec
vybavení
a případná další zavazadla
| XS | S | M | L | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | HEAD TUBE ANGLE | 68.0 ° | 68.0 ° | 68.0 ° | 68.0 ° | ||||||||||||||
| B | HEAD TUBE LENGTH | 95.0 MM | 100.0 MM | 110.0 MM | 120.0 MM | ||||||||||||||
| C | TOP TUBE HORIZONTAL | 560.0 MM | 585.0 MM | 600.0 MM | 615.0 MM | ||||||||||||||
| D | STANDOVER HEIGHT | 720.0 MM | 745.0 MM | 776.0 MM | 799.0 MM | ||||||||||||||
| E | BB OFFSET | -44.0 MM | -44.0 MM | -44.0 MM | -44.0 MM | ||||||||||||||
| F | BB HEIGHT | 308.5 MM | 308.5 MM | 308.5 MM | 308.5 MM | ||||||||||||||
| G | WHEEL BASE | 1,087.0 MM | 1,115.0 MM | 1,131.0 MM | 1,147.0 MM | ||||||||||||||
| H | BB CENTER TO TOPTUBE CENTER | 314.0 MM | 344.0 MM | 389.0 MM | 429.0 MM | ||||||||||||||
| I | BB CENTER TO TOP OF SEATTUBE | 355.0 MM | 395.0 MM | 440.0 MM | 480.0 MM | ||||||||||||||
| J | SEAT ANGLE | 74.0 ° | 74.0 ° | 74.0 ° | 74.0 ° | ||||||||||||||
| K | CHAINSTAY | 435.0 MM | 435.0 MM | 435.0 MM | 435.0 MM | ||||||||||||||
| L | REACH | 402.0 MM | 420.0 MM | 432.0 MM | 445.0 MM | ||||||||||||||
| M | STACK | 552.0 MM | 575.0 MM | 584.0 MM | 594.0 MM | ||||||||||||||
| N | STEM LENGTH | 50.0 MM | 60.0 MM | 70.0 MM | 80.0 MM | ||||||||||||||
