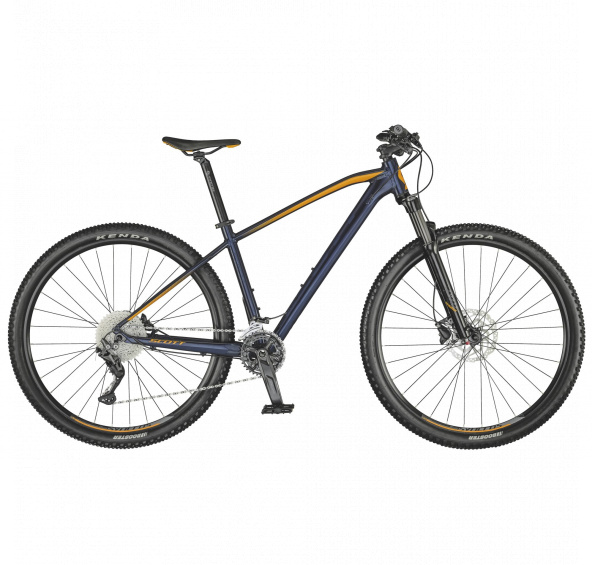

Popis produktu HORSKÉ KOLO SCOTT ASPECT 930 STELLAR BLUE 2021
- Lehký, výkonný a cenově velice zajímavý model horského kola SCOTT Aspect 930 s pevným rámem. V úpravě s ovladačem pružení vidlice, diskovými brzdami a s komponenty Syncros nabízíme vynikající kolo pro začínající horské jezdce.
condition of usage 3Example Cross country and marathon
Please check the detail for more information -
FRAME
Aspect 900 series / Alloy 6061 Custom Butted Tubing
BSA73 / Internal Cable Routing / replaceable hanger -
FORK
Suntour XCR32-RL-R
Remote Lockout / Reb. Adj.
100mm travel -
REMOTE SYSTEM
Suntour Remote lockout -
REAR DERAILLEUR
Shimano Deore RD-M4120
20 Speed
-
FRONT DERAILLEUR
Shimano FD-M4100 Side Swing / 31.8mm -
SHIFTERS
Shimano SL-M4100
R-fire plus / 2 way release
w/gear indicator -
CRANKSET
Shimano FC-M4100-2
2-piece Design / 36X26 -
BB-SET
Shimano BB-SM-BB52
Hollowtech II / threaded -
CHAIN
KMC X10 -
CASSETTE
Shimano CS-M4100-10 / 11-42T -
BRAKES
Shimano MT200 / Hydr. Disc -
ROTOR
Shimano SM-RT10 CL / 180/F and 160/R -
HANDLEBAR
Syncros 3.0 / 720mm
black / 31.8mm / 12mm rise / 9° BS
Syncros Comfort Lock-on Grip -
H'STEM
Syncros 3.0 / 7° / Black -
SEATPOST
Syncros 3.0
31.6mm / 350mm / Black -
SEAT
Syncros 3.0 -
HEADSET
Syncros OE Press Fit / 1 1/8"
OD 50mm / ID 44mm -
HUB (FRONT)
Formula CL51 -
HUB (REAR)
Shimano FH-TX5058 -
SPOKES
14 G / stainless / black -
RIMS
Syncros X-20 Disc
32H / black -
FRONT TIRE
Kenda Booster
2.4" / 30TPI -
REAR TIRE
Kenda Booster
2.4" / 30TPI -
PEDALS
VP VP-536 -
APPROX WEIGHTS IN KG
13.95 -
APPROX WEIGHTS IN LBS
30.75 -
MAX. SYSTEM WEIGHT
128 kg
Celková hmotnost zahrnuje kolo
jezdec
vybavení
a případná další zavazadla
| XS | S | M | L | XL | XXL | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | HEAD TUBE ANGLE | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | ||||||||||||
| B | HEAD TUBE LENGTH | 95.0 MM | 100.0 MM | 110.0 MM | 120.0 MM | 135.0 MM | 150.0 MM | ||||||||||||
| C | TOP TUBE HORIZONTAL | 560.0 MM | 585.0 MM | 600.0 MM | 615.0 MM | 635.0 MM | 655.0 MM | ||||||||||||
| D | STANDOVER HEIGHT | 743.0 MM | 771.0 MM | 783.0 MM | 821.0 MM | 857.0 MM | 891.0 MM | ||||||||||||
| E | BB OFFSET | -60.0 MM | -60.0 MM | -60.0 MM | -60.0 MM | -60.0 MM | -60.0 MM | ||||||||||||
| F | BB HEIGHT | 316.0 MM | 316.0 MM | 316.0 MM | 316.0 MM | 316.0 MM | 316.0 MM | ||||||||||||
| G | WHEEL BASE | 1,102.0 MM | 1,090.0 MM | 1,102.0 MM | 1,123.0 MM | 1,144.0 MM | 1,164.0 MM | ||||||||||||
| H | BB CENTER TO TOPTUBE CENTER | 309.0 MM | 349.0 MM | 394.0 MM | 434.0 MM | 484.0 MM | 534.0 MM | ||||||||||||
| I | BB CENTER TO TOP OF SEATTUBE | 355.0 MM | 395.0 MM | 440.0 MM | 480.0 MM | 530.0 MM | 580.0 MM | ||||||||||||
| J | SEAT ANGLE | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | ||||||||||||
| K | CHAINSTAY | 450.0 MM | 450.0 MM | 450.0 MM | 450.0 MM | 450.0 MM | 450.0 MM | ||||||||||||
| L | REACH | 388.0 MM | 406.0 MM | 419.0 MM | 431.0 MM | 447.0 MM | 463.0 MM | ||||||||||||
| M | STACK | 580.0 MM | 603.0 MM | 612.0 MM | 622.0 MM | 636.0 MM | 649.0 MM | ||||||||||||
| N | STEM LENGTH | 50.0 MM | 60.0 MM | 70.0 MM | 80.0 MM | 90.0 MM | 100.0 MM | ||||||||||||
