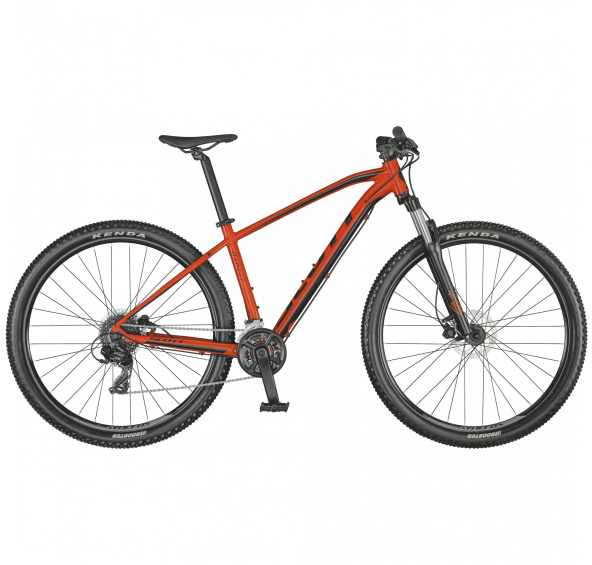

Popis produktu HORSKÉ KOLO SCOTT ASPECT 960 RED 2021
- Lehký, výkonný a cenově velice zajímavý model horského kola SCOTT Aspect 960 s pevným rámem. V úpravě s diskovými brzdami a komponenty Syncros se jedná o vynikající kolo pro začínající terénní jezdce.
condition of usage 3Example Cross country and marathon
Please check the detail for more information -
FRAME
Aspect 900-700 series / Alloy 6061 Custom Tubing
BSA73 / Internal Cable Routing / replaceable hanger -
FORK
Suntour XCE28
100mm travel -
REAR DERAILLEUR
Shimano Tourney RD-TX800
16 Speed -
FRONT DERAILLEUR
Shimano FD-M315-TS / 31.8mm
-
SHIFTERS
Shimano SL-M315
R-fire plus / 2 way release
w/gear indicator -
CRANKSET
Prowheel TM-CY01
36X22 w/CG -
BB-SET
Feimin FP.B908N
BB73 / square taper -
CHAIN
KMC Z-8.3 -
CASSETTE
Sunrace CSM55 8AV / 11-34T -
BRAKES
Tektro HDM275 Hydr. Disc -
ROTOR
Tektro / 6 bolt / F&R 160mm -
HANDLEBAR
HL MTB-AL-312BT / 720mm / black / 12mm rise
Sncros Pro Grip -
H'STEM
TDS-C301-8FOV / 10° / 31.8 / Black -
SEATPOST
HL SP C207
31.6mm / 350mm / Black -
SEAT
Syncros 3.0 -
HEADSET
Syncros OE Press Fit / 1 1/8"
OD 50mm / ID 44mm -
HUB (FRONT)
Formula DC-19 FQR Disc -
HUB (REAR)
Formula DC-25 8s RQR Disc -
SPOKES
14 G / stainless / black -
RIMS
Syncros X-20 Disc
32H / black -
FRONT TIRE
Kenda Booster
2.4" / 30TPI -
REAR TIRE
Kenda Booster
2.4" / 30TPI -
PEDALS
Feimin FP-873-ZU -
APPROX WEIGHTS IN KG
14.60 -
APPROX WEIGHTS IN LBS
32.19 -
MAX. SYSTEM WEIGHT
128 kg
Celková hmotnost zahrnuje kolo
jezdec
vybavení
a případná další zavazadla
XS | S | M | L | XL | XXL | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A | HEAD TUBE ANGLE | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | ||||||||||||
B | HEAD TUBE LENGTH | 95.0 MM | 100.0 MM | 110.0 MM | 120.0 MM | 135.0 MM | 150.0 MM | ||||||||||||
C | TOP TUBE HORIZONTAL | 560.0 MM | 585.0 MM | 600.0 MM | 615.0 MM | 635.0 MM | 655.0 MM | ||||||||||||
D | STANDOVER HEIGHT | 743.0 MM | 771.0 MM | 783.0 MM | 821.0 MM | 857.0 MM | 891.0 MM | ||||||||||||
E | BB OFFSET | -60.0 MM | -60.0 MM | -60.0 MM | -60.0 MM | -60.0 MM | -60.0 MM | ||||||||||||
F | BB HEIGHT | 316.0 MM | 316.0 MM | 316.0 MM | 316.0 MM | 316.0 MM | 316.0 MM | ||||||||||||
G | WHEEL BASE | 1,102.0 MM | 1,090.0 MM | 1,102.0 MM | 1,123.0 MM | 1,144.0 MM | 1,164.0 MM | ||||||||||||
H | BB CENTER TO TOPTUBE CENTER | 309.0 MM | 349.0 MM | 394.0 MM | 434.0 MM | 484.0 MM | 534.0 MM | ||||||||||||
I | BB CENTER TO TOP OF SEATTUBE | 355.0 MM | 395.0 MM | 440.0 MM | 480.0 MM | 530.0 MM | 580.0 MM | ||||||||||||
J | SEAT ANGLE | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | ||||||||||||
K | CHAINSTAY | 450.0 MM | 450.0 MM | 450.0 MM | 450.0 MM | 450.0 MM | 450.0 MM | ||||||||||||
L | REACH | 388.0 MM | 406.0 MM | 419.0 MM | 431.0 MM | 447.0 MM | 463.0 MM | ||||||||||||
M | STACK | 580.0 MM | 603.0 MM | 612.0 MM | 622.0 MM | 636.0 MM | 649.0 MM | ||||||||||||
N | STEM LENGTH | 50.0 MM | 60.0 MM | 70.0 MM | 80.0 MM | 90.0 MM | 100.0 MM |
