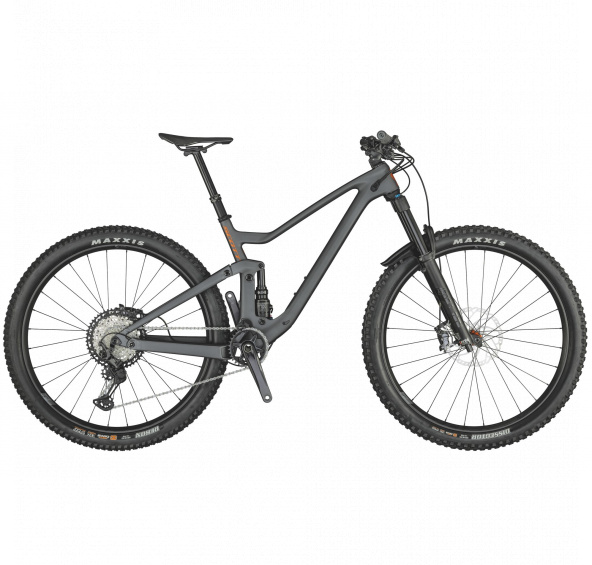

Popis produktu KOLO SCOTT GENIUS 920 2021
- Abyste se na vrchol kopce dostali s lehkostí a dolů s náležitou rychlostí. Jízdu si vždy přizpůsobíte pomocí systému tlumení TwinLoc. Se sadou Shimano s 12 rychlostmi a komponenty Syncros je model Genius 920 připraven k akci. Kamkoli. Kdykoli.
condition of usage 4Example All mountain, trail
Please check the detail for more information -
RÁM
Genius Carbon / IMP Technology / HMF Main Frame
BB92 / Alloy SL 6011 swingarm
VLK Virtual 4 Link kinematic
27.5" (2.6 & 2.8) and 29" (2.4 & 2.6) tire compatible with Geo -BB adj.
SW dropouts for Boost 12x148mm
TBC Trunnion box construction -
VIDLICE
FOX 36 Float Performance Elite Air FIT4
3-Modes with low Speed adj. / Kabolt 15x110mm axle
44mm offset / tapered steerer / Reb. Adj. / Lockout
150mm travel -
TLUMIČE
FOX NUDE TR EVOL Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
custom Ramp Adjust with linear and progressive setting
DPS / Reb. Adj.
Travel 150-100-Lockout / 185X55mm -
REMOTE SYSTEM
SCOTT TwinLoc TSP Technology
Suspension-Seatpost Remote
below Bar / 3 modes / integ. Grip clamp
-
PŘEHAZOVAČKA
Shimano XT RD-M8100 SGS
Shadow Plus / 12 Speed -
ŘAZENÍ
Shimano XT SL-M8100-IR / Rapidfire Plus
Ispec EV clamp -
KLIKY
Shimano XT FC-M8100-1 / Hollowtech 2
32T -
VODÍTKO ŘETĚZU
SCOTT custom -
BB-SET
Shimano SM-BB71-41A / shell 41x92mm -
ŘETĚZ
Shimano SLX CN-M7100 -
KAZETA
Shimano XT CS-M8100-12 / 10-51 T -
BRZDY
Shimano XT M8120 4 Piston Disc -
KOTOUČE
Shimano SM-RT66 / 6 Bolt / 203/F and 180/R -
ŘÍDÍTKA
Syncros Hixon 1.5 / Alloy 7050D.B.
12mm rise / 9° / 780mm
Syncros Pro lock-on grips -
PŘEDSTAVEC
Syncros FL1.5 / Alloy 2014
integrated Spacer & Top Cap / 31.8mm / 6° / 1 1/8" -
SEDLOVKA
FOX Transfer Performance Elite Dropper Post
31.6mm / S size 125mm / M & L size 150mm / XL size 175mm -
SEDLO
Syncros Tofino 2.0 Regular
CRMO rails -
HL.SLOŽENÍ
Syncros Pro Press Fit E2 / Tapered 1.5"-1 1/8"
OD 50/62mm / ID 44/56mm -
KOLA
Syncros Revelstoke 2.0 6 Bolt
F: 15x110mm, R: 12x148mm Boost
30mm Tubeless ready rim 28H / Micro Spline
Syncros Axle w/Removable Lever with Tool -
PŘEDNÍ PNEU
Maxxis Dissector / 2.6" / 60TPI Kevlar Bead
Tubeless Ready / EXO 3C maxx Terra -
ZADNÍ PNEU
Maxxis Rekon / 2.6" / 60TPI Kevlar Bead
Tubeless Ready / EXO 3C maxx Terra -
EXTRAS
Fox 36 Fender -
APPROX WEIGHTS IN KG
13.80 -
APPROX WEIGHTS IN LBS
30.42 -
MAX. SYSTEM WEIGHT
128KGCelková hmotnost zahrnuje kolo
jezdec
vybavení
a případná další zavazadla
| S / 900 | S / 700 | M / 900 | M / 700 | L / 900 | L / 700 | XL / 900 | XL / 700 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LOW BB Setting | HIGH BB Setting | LOW BB Setting | HIGH BB Setting | LOW BB Setting | HIGH BB Setting | LOW BB Setting | HIGH BB Setting | ||||||||||||
| A | HEAD TUBE ANGLE | 65.0 ° | 65.6 ° | 65.0 ° | 65.6 ° | 65.0 ° | 65.6 ° | 65.0 ° | 65.6 ° | ||||||||||
| B | HEAD TUBE LENGTH | 95.0 MM | 95.0 MM | 95.0 MM | 95.0 MM | 110.0 MM | 110.0 MM | 125.0 MM | 125.0 MM | ||||||||||
| C | TOP TUBE HORIZONTAL | 569.7 MM | 568.2 MM | 602.8 MM | 601.2 MM | 633.4 MM | 631.8 MM | 670.1 MM | 668.4 MM | ||||||||||
| D | STANDOVER HEIGHT | 739.6 MM | 729.5 MM | 740.8 MM | 731.3 MM | 758.4 MM | 749.5 MM | 774.1 MM | 765.6 MM | ||||||||||
| E | BB OFFSET | -27.4 MM | -20.0 MM | -27.5 MM | -20.0 MM | -27.6 MM | -20.0 MM | -27.8 MM | -20.0 MM | ||||||||||
| F | BB HEIGHT | 346.1 MM | 340.0 MM | 346.0 MM | 340.0 MM | 345.9 MM | 340.0 MM | 345.7 MM | 340.0 MM | ||||||||||
| G | WHEEL BASE | 1,165.9 MM | 1,164.6 MM | 1,198.9 MM | 1,197.6 MM | 1,232.1 MM | 1,230.8 MM | 1,271.3 MM | 1,270.0 MM | ||||||||||
| H | BB CENTER TO TOPTUBE CENTER | ||||||||||||||||||
| I | BB CENTER TO TOP OF SEATTUBE | 410.0 MM | 410.0 MM | 440.0 MM | 440.0 MM | 480.0 MM | 480.0 MM | 520.0 MM | 520.0 MM | ||||||||||
| J | SEAT ANGLE | 74.7 ° | 75.3 ° | 74.7 ° | 75.3 ° | 74.8 ° | 75.3 ° | 74.8 ° | 75.3 ° | ||||||||||
| K | CHAINSTAY | 438.0 MM | 436.0 MM | 438.0 MM | 436.0 MM | 438.0 MM | 436.0 MM | 438.0 MM | 436.0 MM | ||||||||||
| L | REACH | 405.9 MM | 412.0 MM | 439.1 MM | 445.0 MM | 466.1 MM | 472.0 MM | 499.2 MM | 505.0 MM | ||||||||||
| M | STACK | 599.7 MM | 595.5 MM | 599.9 MM | 595.5 MM | 613.7 MM | 609.2 MM | 627.5 MM | 622.8 MM | ||||||||||
| N | STEM LENGTH | 40.0 MM | 40.0 MM | 50.0 MM | 50.0 MM | 50.0 MM | 50.0 MM | 50.0 MM | 50.0 MM | ||||||||||
| 0 | TRAIL | 117.7 MM | 107.3 MM | 117.6 MM | 107.3 MM | 117.5 MM | 107.3 MM | 117.4 MM | 107.3 MM | ||||||||||
