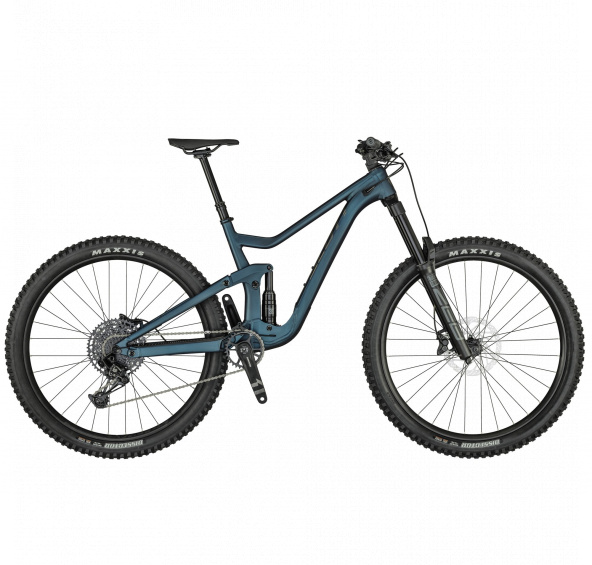

Popis produktu KOLO SCOTT RANSOM 930 2021
- Ransom. Se 170mm zdvihem zdolává traily, drtí kopce, získává etapová vítězství a tříbí kvalitu horské cyklistiky. Verze 930, vybavená naším systémem ovládání tlumení TwinLoc, sadou Sram Eagle a komponenty Syncros překoná veškerá úskalí.
condition of usage 4Example All mountain, trail
Please check the detail for more information -
RÁM
Ransom Alloy SL 6011
Custom butted / VLK Virtual 4 Link kinematic
27.5" (2.6 & 2.8) and 29" (2.4 & 2.6) tire compatible with Geo-BB adj.
TBC Trunnion box construction / Boost 12x148mm -
VIDLICE
RockShox Zeb R Solo Air
15x110mm Maxle stealth axle
42mm offset / Tapered Steerer
Reb. Adj. / 170mm travel -
TLUMIČ
X-Fusion NUDE Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
Reb. Adj.
Travel 170-120-Lockout / 205X65mm -
REMOTE SYSTEM
SCOTT TwinLoc TSP-R Technology
Suspension-Seatpost Remote
below Bar / 3 modes / integ. Grip clamp
-
PŘEHAZOVAČKA
SRAM NX / Eagle 12 Speed -
ŘAZENÍ
SRAM SX Eagle Trigger -
KLIKY
SRAM X1000 Eagle DUB Boost
32T -
VODÍTKO ŘETĚZU
SCOTT Chainguide -
BB-SET
SRAM DUB PF integrated / shell 41x92mm -
ŘETEZ
SRAM CN SX Eagle -
KAZETA
SRAM NX / PG1210 / 11-50 T -
BRZDY
Shimano MT420 4 Piston -
KOTOUČE
Shimano SM-RT30 / CL / 203/F and 180/R -
ŘÍDÍTKA
Syncros Hixon 1.5 Rise / Alloy 20140D.B.
20mm rise / 8° / 800mm
Syncros Pro lock-on grips -
H'STEM
Syncros XM1.5 / Alloy 6061
integrated Spacer & Top Cap / 31.8mm / 0° / 1 1/8" -
SEDLOVKA
Syncros Duncan 2.5 Dropper Post
31.6mm / S 125mm / M 150mm / L & XL 170mm -
SEDLO
Syncros Kaslo 2.0
Crmo Rails -
HL.SLOŽENÍ
Syncros OE Press Fit E2 / Tapered 1.5"-1 1/8"
OD 50/62mm / ID 44/56mm -
NÁBOJ(FRONT)
Formula CL-811 / 15x110mm -
NABOJ(REAR)
Formula CL-148S / Boost 12x148mm -
ŠPICE
Stainless Black 15G / 1.8mm -
RÁFKY
Syncros X-30S / 32H / 30mm / Sleeve Joint
Tubeless ready -
PŘEDNÍ PNEU
Maxxis Assegai / 2.6" / 60TPI Kevlar Bead
EXO / TR / Dual -
ZADNÍ PNEU
Maxxis Dissector / 2.6" / 60TPI Kevlar Bead
EXO / TR / Dual -
EXTRAS
RS Zeb Fender -
APPROX WEIGHTS IN KG
15.50 -
APPROX WEIGHTS IN LBS
34.17 -
MAX. SYSTEM WEIGHT
128KGCelková hmotnost zahrnuje kolo
jezdec
vybavení
a případná další zavazadla

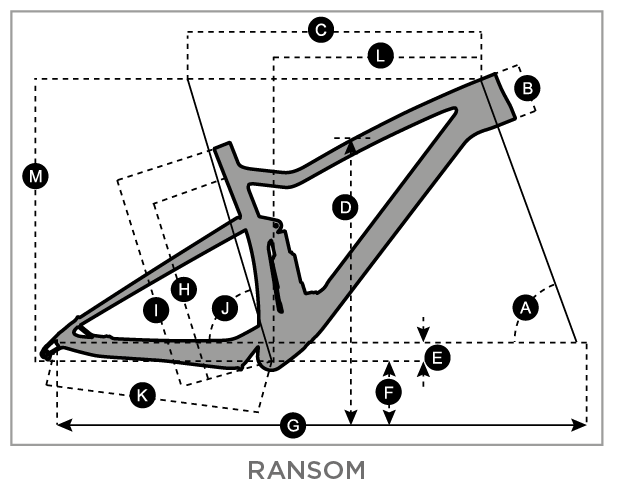

| S | S | M | M | L | L | XL | XL | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LOW BB Setting | HIGH BB Setting | LOW BB Setting | HIGH BB Setting | LOW BB Setting | HIGH BB Setting | LOW BB Setting | HIGH BB Setting | ||||||||||||
| A | HEAD TUBE ANGLE | 64.5 ° | 65.0 ° | 64.5 ° | 65.0 ° | 64.5 ° | 65.0 ° | 64.5 ° | 65.0 ° | ||||||||||
| B | HEAD TUBE LENGTH | 100.0 MM | 100.0 MM | 100.0 MM | 100.0 MM | 115.0 MM | 115.0 MM | 130.0 MM | 130.0 MM | ||||||||||
| C | TOP TUBE HORIZONTAL | 571.1 MM | 569.7 MM | 604.2 MM | 602.7 MM | 634.7 MM | 633.2 MM | 671.3 MM | 669.7 MM | ||||||||||
| D | STANDOVER HEIGHT | 744.6 MM | 733.9 MM | 746.3 MM | 736.5 MM | 760.9 MM | 751.6 MM | 776.5 MM | 767.4 MM | ||||||||||
| E | BB OFFSET | -22.0 MM | -15.0 MM | -22.0 MM | -15.0 MM | -22.0 MM | -15.0 MM | -22.0 MM | -15.0 MM | ||||||||||
| F | BB HEIGHT | 353.5 MM | 346.5 MM | 353.5 MM | 346.5 MM | 353.5 MM | 346.5 MM | 353.5 MM | 346.5 MM | ||||||||||
| G | WHEEL BASE | 1,182.9 MM | 1,181.4 MM | 1,215.9 MM | 1,214.4 MM | 1,249.2 MM | 1,247.8 MM | 1,288.5 MM | 1,287.1 MM | ||||||||||
| H | BB CENTER TO TOPTUBE CENTER | ||||||||||||||||||
| I | BB CENTER TO TOP OF SEATTUBE | 420.0 MM | 420.0 MM | 440.0 MM | 440.0 MM | 470.0 MM | 470.0 MM | 500.0 MM | 500.0 MM | ||||||||||
| J | SEAT ANGLE | 75.0 ° | 75.5 ° | 75.0 ° | 75.5 ° | 75.0 ° | 75.5 ° | 75.0 ° | 75.5 ° | ||||||||||
| K | CHAINSTAY | 437.9 MM | 436.0 MM | 437.9 MM | 436.0 MM | 437.9 MM | 436.0 MM | 437.9 MM | 436.0 MM | ||||||||||
| L | REACH | 406.3 MM | 412.0 MM | 439.5 MM | 445.0 MM | 466.5 MM | 472.0 MM | 499.5 MM | 505.0 MM | ||||||||||
| M | STACK | 613.6 MM | 609.8 MM | 613.6 MM | 609.8 MM | 627.6 MM | 623.4 MM | 641.3 MM | 637.0 MM | ||||||||||
| N | STEM LENGTH | 50.0 MM | 50.0 MM | 50.0 MM | 50.0 MM | 50.0 MM | 50.0 MM | 50.0 MM | 50.0 MM | ||||||||||
| 0 | TRAIL | 122.5 MM | 112.3 MM | 122.5 MM | 112.3 MM | 122.5 MM | 112.3 MM | 122.5 MM | 112.3 MM | ||||||||||
