Popis produktu Elektrokolo Mondraker CRAFTY CARBON R Carbon/White/Red, 2021

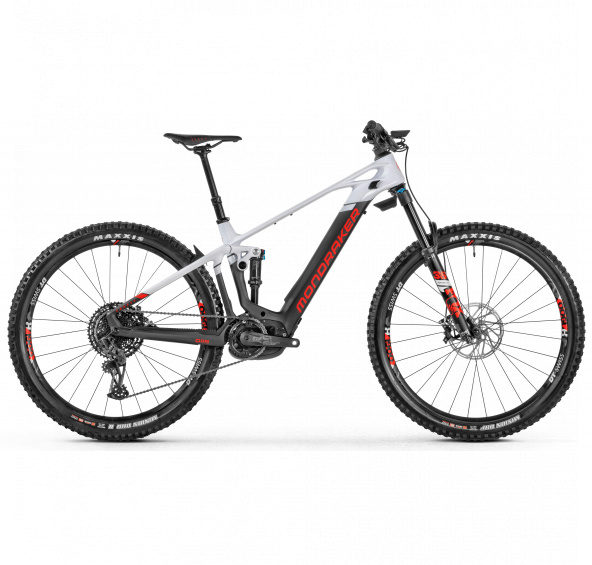

Elektrokolo Mondraker CRAFTY CARBON R Carbon/White/Red, 2021
| vyráběné velikosti |
S 380mm / M 420mm / L 450mm / XL 490mm
|
| rám |
Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
|
| vidlice |
Fox 36 29 Float FIT GRIP EVOL Performance, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
|
| hlavové složení |
Acros custom for 1-1/2 head tube, angular contact bearings 40x52x7, Internal cable routing
|
| přehazovačka |
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
|
| řazení |
Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
|
| brzdové páčky |
Sram G2 RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
|
| kliky a převodníky |
Race Face Aeffect, 165mm
|
| řidítka |
Onoff Krypton 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9º backsweep, 5 upsweep, 31.8mm barbore Onoff Desert, 1lock-on, 135mm, sizes: S/M L/XL
|
| představec |
Onoff Krypton FG 30mm, 6061 forged alloy, 31.8mm barbore
|
| sedlovka |
Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm
|
| sedlo |
Fizik Antares R7
|
| náboj přední |
DT 370, Boost 15x110mm, IS 6 bolts
|
| náboj zadní |
DT 370, Boost 12x148mm, 3 Pawl system, IS 6 bolts
|
| řetěz |
Sram NX Eagle, 12s, Powerlock
|
| kazeta |
Sram XG-1230, 11-50T, 12s
|
| dráty |
DT Hybrid SP, straightpull
|
| ráfky |
DT Swiss H1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes
|
| pláště |
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
|
| tlumič |
Fox Float DPS Performance, 205x65mm. Settings: Compression 3 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
|
| přední brzda |
Sram G2 RSC, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
|
| zadní brzda |
Sram G2 RSC, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
|
| plášť zadní |
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
|
| nastavení tlumiče |
Medium compression, Medium rebound, 0.4 volume spacer
|
| převodník |
Sram X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD
|
| patka k přehazovačce |
Mondraker M068
|
| motor + baterie |
Bosch Performance Line CX Cruise (25Km/h) GEN4, computer Bosch Kiox, Bosch Powertube 625Wh
|
| sezóna | 2021 |
