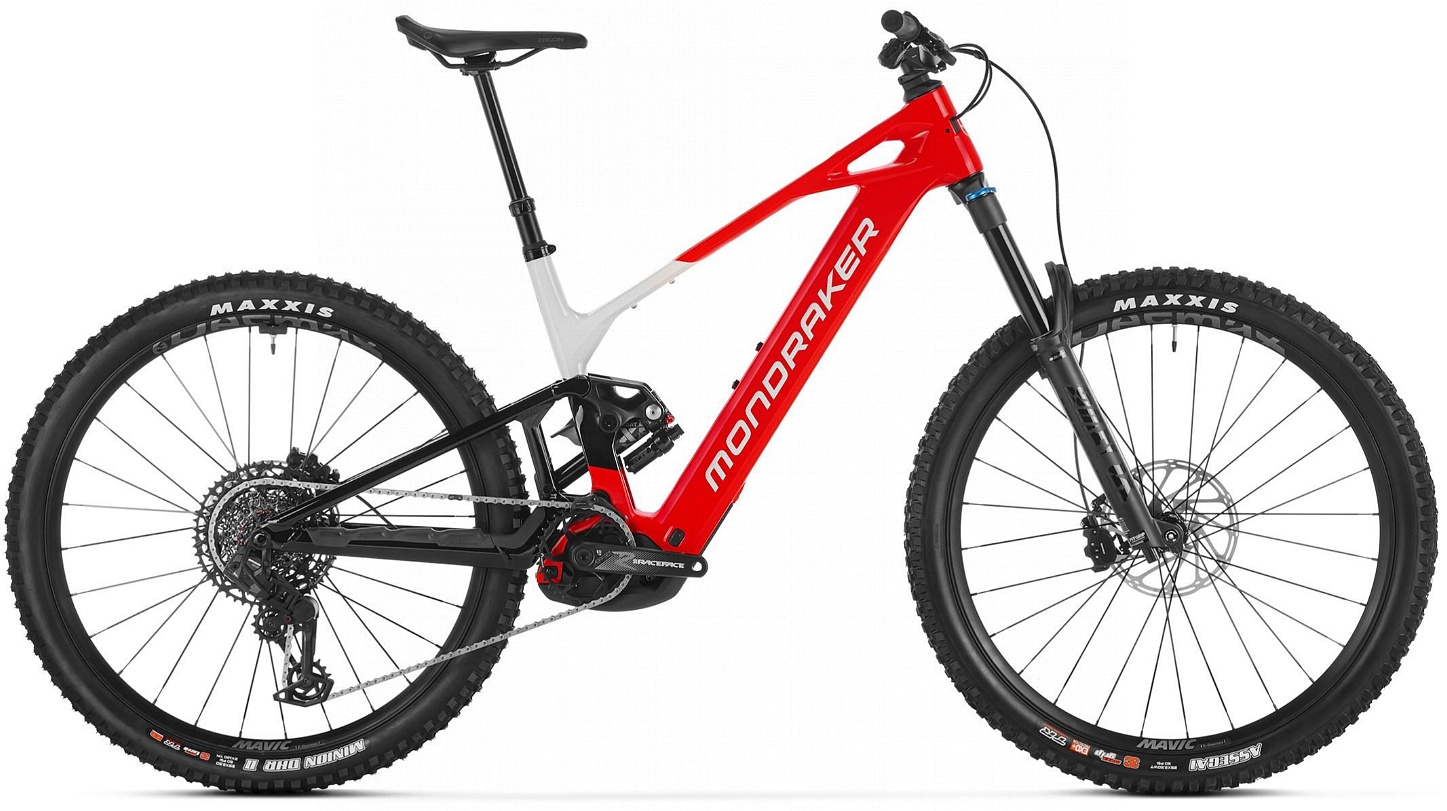

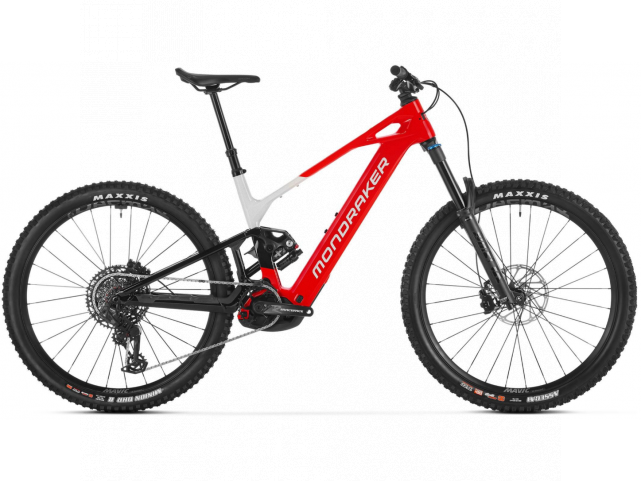

Elektrokolo MONDRAKER Crafty Carbon R, chili red, 2026

Elektrokolo MONDRAKER Crafty Carbon R, chili red, 2026

Dráty
Mavic J-bend double butted, contactless lacing
Rám
Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Vidlice
Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Zadní tlumič
Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Velikosti
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Řídítka
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8? backsweep, 5? upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Nastavení tlumiče
CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer
Řetěz
Sram GX Eagle T-Type, 12s, Powerlock
Představec
Onoff S6 30mm 0?, 6061 forged alloy + CNC, 31.8mm barbore
Sedlo
Ergon SM-10
Hlavové složení
Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Přehazovačka
Sram S1000 Eagle AXS T-Type, 12s
Gripy
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Sedlovka
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
Počet převodů
1X12
Zadní brzda
Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brzdové páčky
Sram Maven Base , SwingLink and lever pivot bushings, tools-free reach adjust
Přední brzda
Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Patka přehazovačky
Sram UDH
Řadící páčka
Sram Eagle AXS Pod MMX, 12s
Zadní náboj
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
Ráfky
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Typ vidlice
SUSPENSION FORK
Kazeta
Sram XS-1270, 10-52T, T-Type, 12s
Zadní plášť
Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Přední náboj
Mavic, Boost 15x110mm, IS 6 bolts
Materiál rámu
carbon/aluminium
Displej
Kiox 400 / Bosch Mini Remote
Kliky
Race Face Aeffect-R ebike, 160mm
Přední plášť
Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
Baterie
Bosch Powertube 800Wh
Motor
Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
Převodník
Sram Eagle 34T T-Type, direct mount, steel, CL55
Hmotnost
24,5 kg
Velikost kol
29
