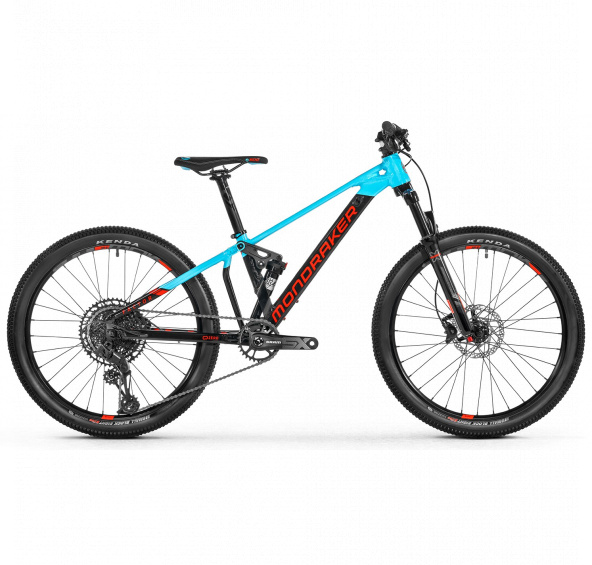

Popis produktu horské kolo MONDRAKER Factor 24, black/blue/red, 2021
| vyráběné velikosti | one size 300mm |
| hmotnost | 12,3 kg |
| rám | factor 24 6061 alloy stealth evo, hydroformed tubing, zero suspension system, 100mm travel, one piece bolt-on upper link, qr 9mm rear axle, 73mm bsa bottom bracket, hhg internal cable routing, dedicated 1x drivetrain design. 26 wheelset compatible |
| vidlice | x-fusion velvet rl2 26, 100mm, motion control, air spring, tapered steerer tube, 9x100mm axle, 32mm aluminum stanchions, 41mm offset. settings: lockout, rebound, air preload |
| hlavové složení | onoff saturn tapered for 1-1-8 to 1-1-2 head tube, acb sealed bearings, top 41x30.2x7x45x45, bottom 51.9x40x8x45x45 |
| přehazovačka | sram sx eagle, type 3 roller bearing clutch, cage lock, long cage, 1x12s, x-actuation 1:1 |
| řazení | sram trigger sx eagle, 12s, x-actuation 1:1 |
| brzdové páčky | shimano m4100, alloy lever, tooled reach adjust |
| kliky a převodníky | sram sx eagle, dub axle, direct mount chain ring, 155mm |
| středové složení | sram dub bsa, sealed bearings, 73mm |
| řidítka | sdg slater, double butted 6061 alloy, rise: 20mm, width: 650mm, 5 backsweep, 8 upsweep, 31.8mm barbore with 4x19mm shims sdg slater jr d19mm, 115mm |
| představec | onoff sulfur fg 30mm 0, 6061 forged alloy, 31.8mm barbore |
| sedlovka | onoff sulfur 0-r, 6061 t6 alloy, 3d forged, diameter 31.6mm, length 400mm |
| sedlo | sdg fly jr |
| náboj přední | formula dc20lw, 9x100mm, cup cone ball bearings, is 6 bolts |
| náboj zadní | formula dc22lw 9x135mm, cup cone ball bearings, is 6 bolts |
| řetěz | sram sx eagle, 12s, powerlock |
| ráfky | mdk-xp1 24 tlr, 23mm internal width, tubeless ready, 32 spokes |
| pláště | kenda booster 24x2.4 single compound 30tpi, wire bead |
| kazeta | sram pg-1230, 11-50t, 12s |
| dráty | cn round stainless steel |
:
