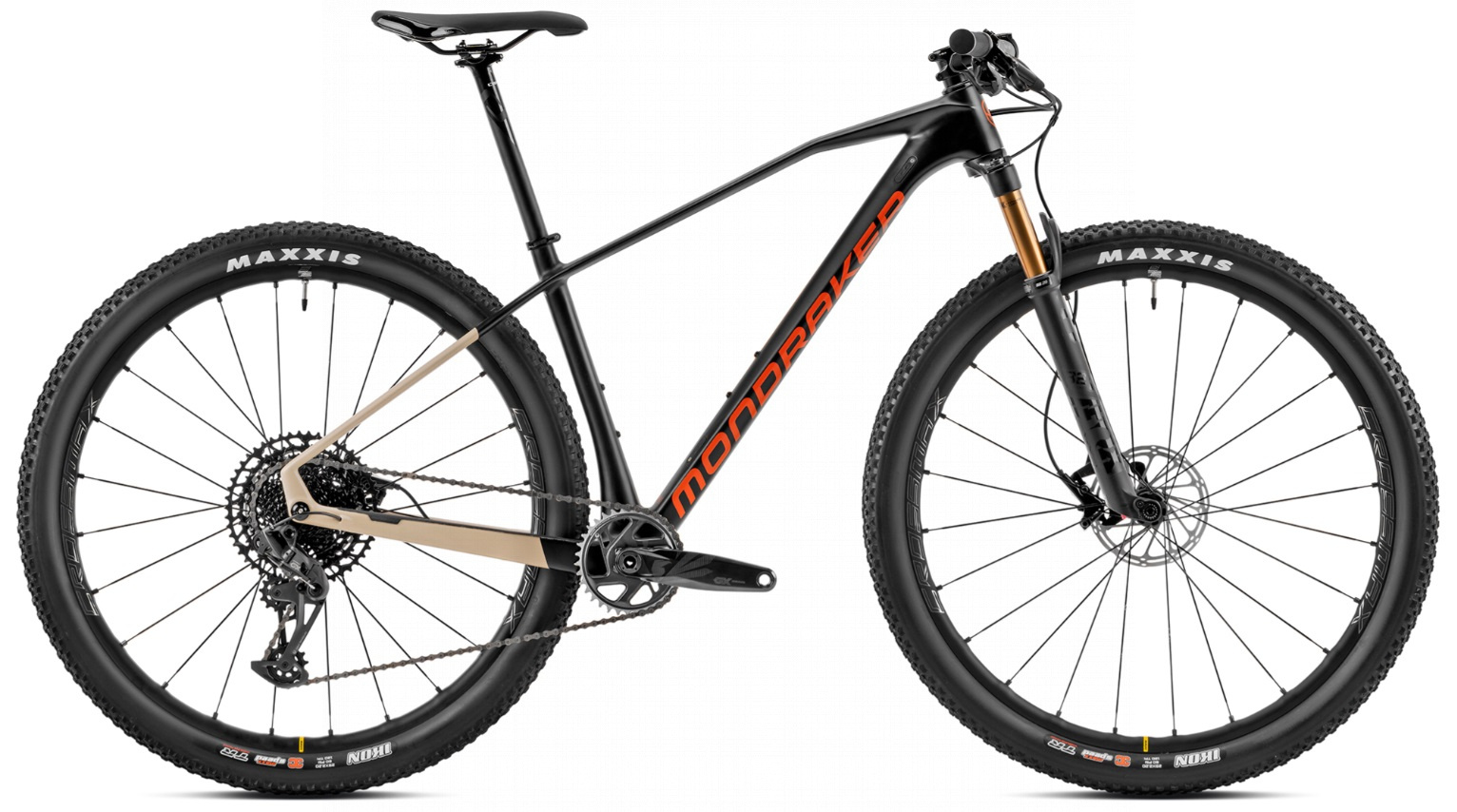

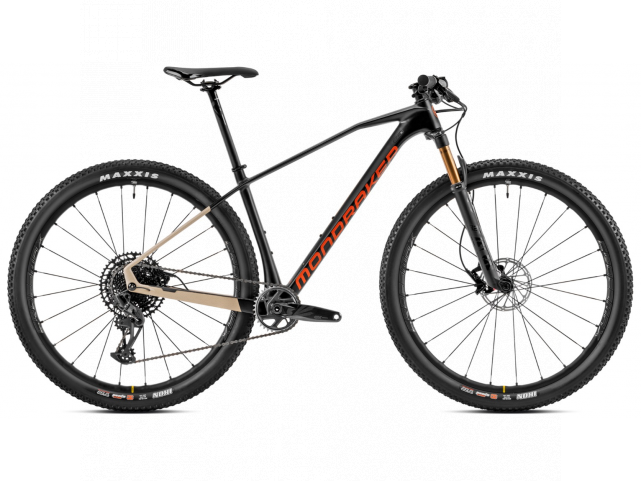

Kolo MONDRAKER Chrono Carbon RR, carbon/desert grey/orange, 2023
Kolo MONDRAKER Chrono Carbon RR, carbon/desert grey/orange, 2023
vyráběné velikosti
S: 395mm / M: 430mm / L: 470mm / XL: 520mm
S: 395mm / M: 430mm / L: 470mm / XL: 520mm
rám
Chrono 29 Stealth full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12x148mm rear axle, Comfort Flat chainstays (Flatstays) design
Chrono 29 Stealth full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12x148mm rear axle, Comfort Flat chainstays (Flatstays) design
vidlice
Fox 32 Step Cast Float FIT4 Evol Factory Kashima, 100mm, tapered steerer tube,15x110mm Boost axle, offset 44mm. Settings: remote 2pos Push-unlock, compression micro-adjustment at low-speed, rebound, air preload, Fox single pull
Fox 32 Step Cast Float FIT4 Evol Factory Kashima, 100mm, tapered steerer tube,15x110mm Boost axle, offset 44mm. Settings: remote 2pos Push-unlock, compression micro-adjustment at low-speed, rebound, air preload, Fox single pull
hlavové složení
Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º
Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º
přehazovačka
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
řazení
Sram Trigger NX Eagle, 12s, X-Actuation 1:1
Sram Trigger NX Eagle, 12s, X-Actuation 1:1
brzdové páčky
Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
kliky
Sram GX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
Sram GX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
středové složení
Sram DUB BSA, sealed bearings, 73mm
Sram DUB BSA, sealed bearings, 73mm
řidítka
Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
představec
MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: size S: 60mm, size M: 70mm, size L: 80mm, size XL: 90mm
MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: size S: 60mm, size M: 70mm, size L: 80mm, size XL: 90mm
sedlovka
Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm
Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm
sedlo
Mondraker XC Series, steel rail
Mondraker XC Series, steel rail
náboj přední
Mavic, Boost 15x110mm, IS 6 bolts
Mavic, Boost 15x110mm, IS 6 bolts
náboj zadní
Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts
Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts
řetěz
Sram SX Eagle, 12s, Powerlock
Sram SX Eagle, 12s, Powerlock
kazeta
Sram PG-1230, 11-50T, 12s
Sram PG-1230, 11-50T, 12s
dráty
Mavic straight-pull double butted, contactless lacing
Mavic straight-pull double butted, contactless lacing
ráfky
Mavic Crossmax SL S 29, 25mm internal width, Maxtal welded rim, hookless, tubeless, 24 spokes
Mavic Crossmax SL S 29, 25mm internal width, Maxtal welded rim, hookless, tubeless, 24 spokes
pláště
Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts
Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts
obj.c.
010.23033
010.23033
gripy
Onoff Desert, 1lock-on, 135mm
Onoff Desert, 1lock-on, 135mm
přední brzda
Sram Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Sram Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
zadní brzda
Sram Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Sram Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
převodník
34T, CNC-machined alloy, X-SYNC 2
34T, CNC-machined alloy, X-SYNC 2
patka k přehazovačce
Mondraker M068
Mondraker M068
