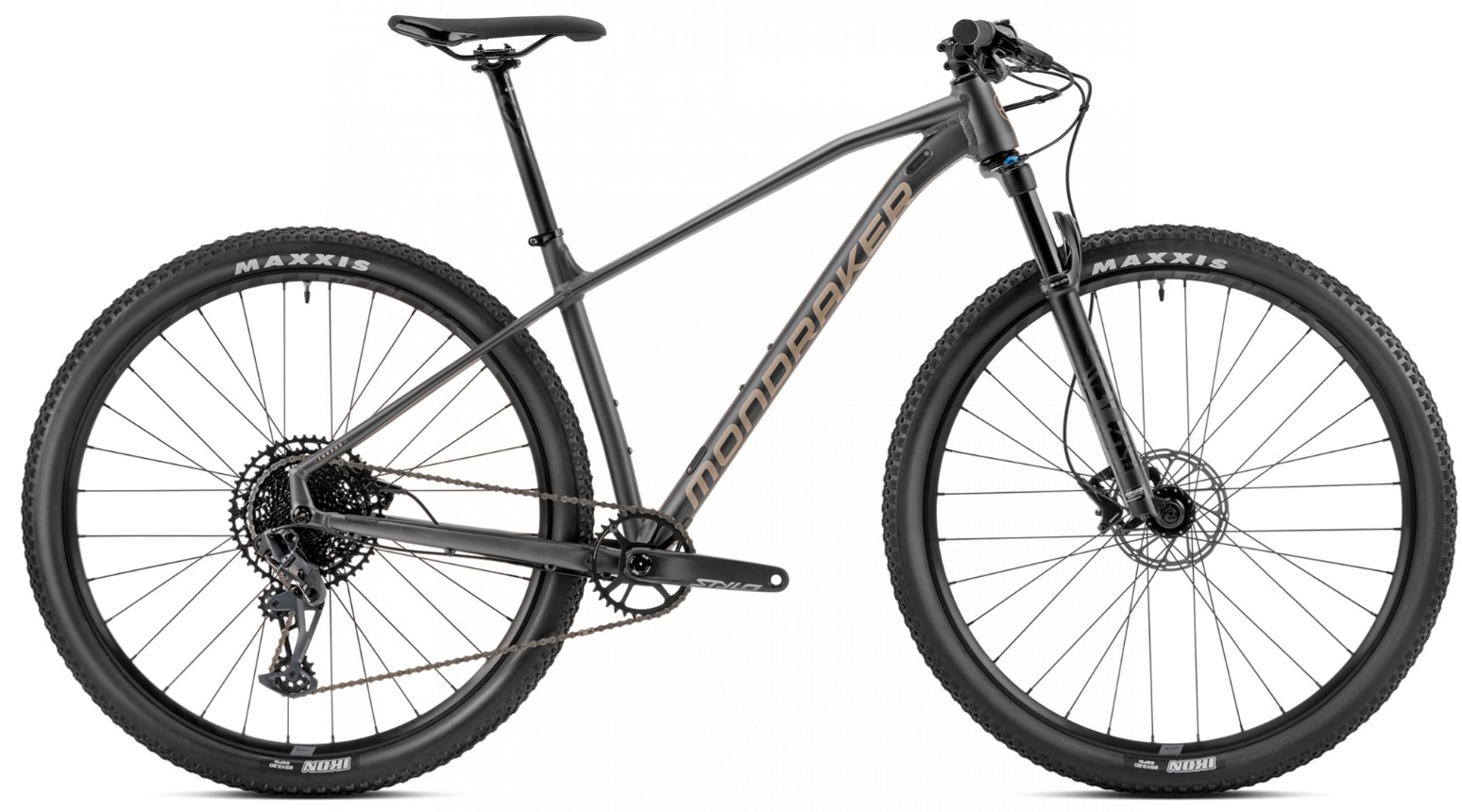

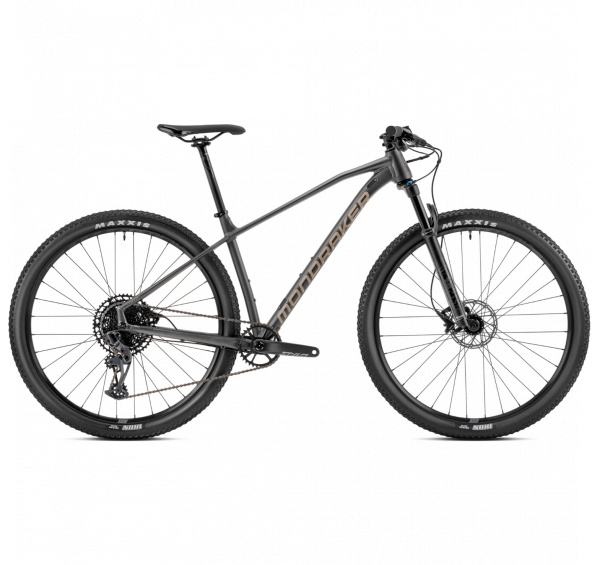

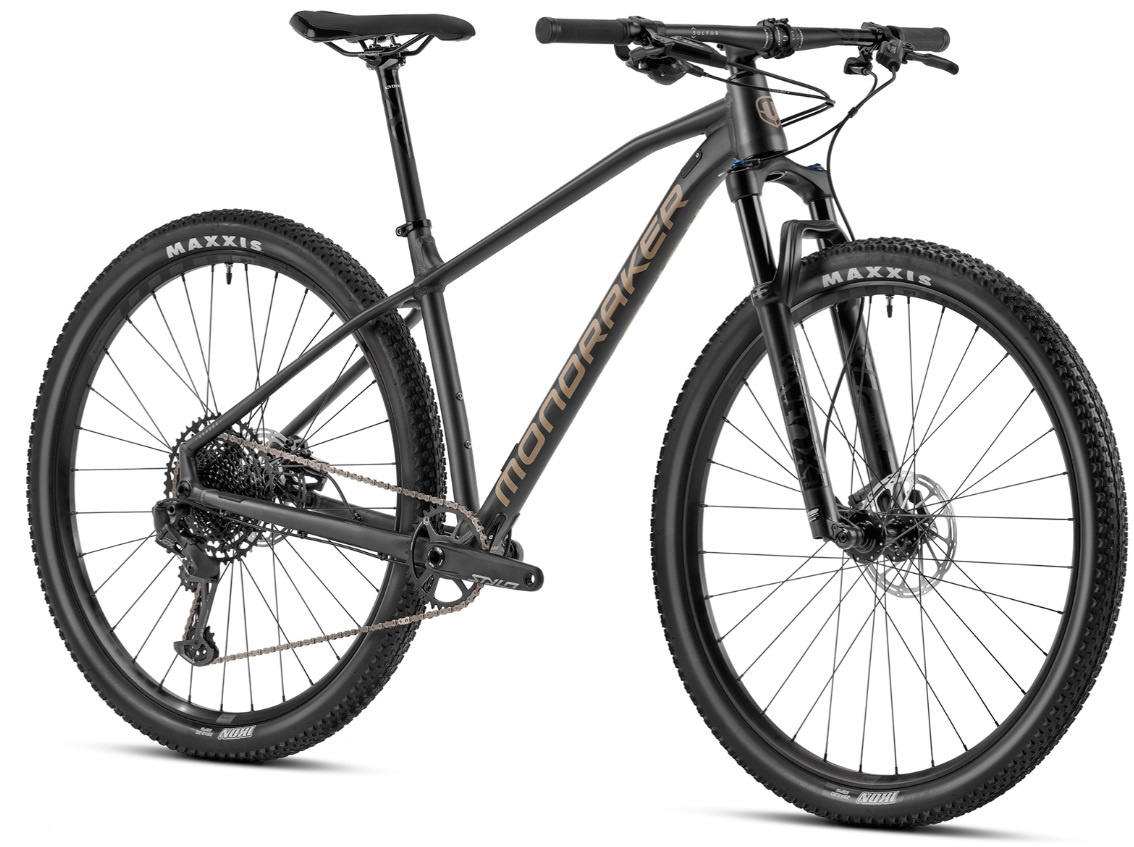

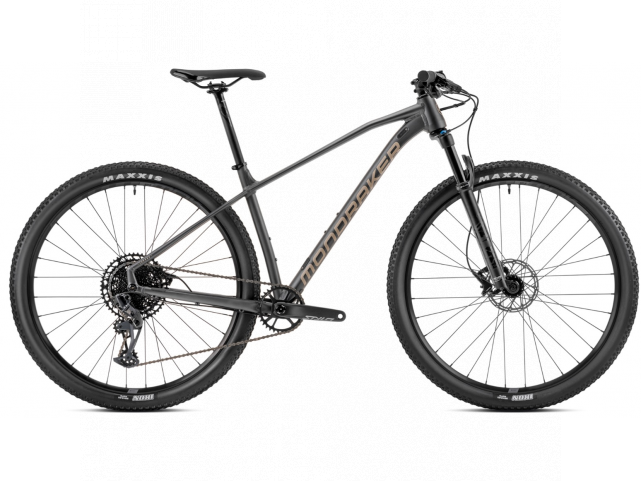

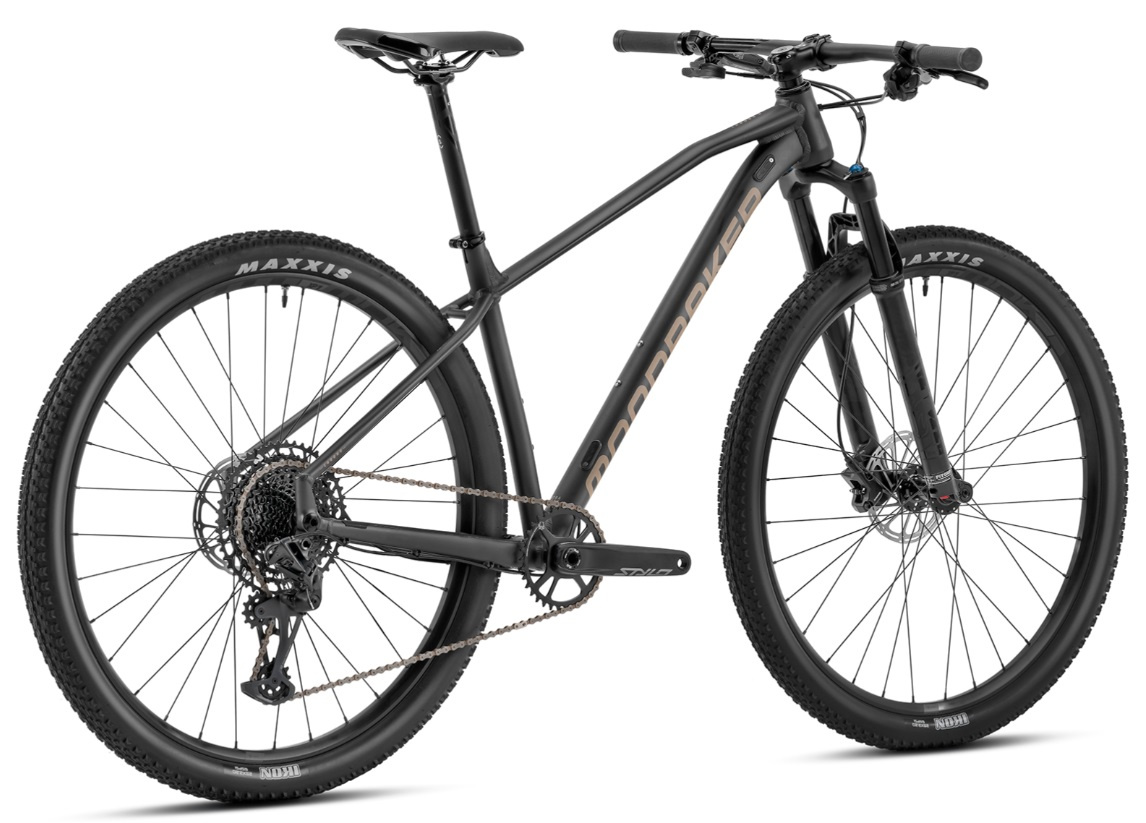

Kolo MONDRAKER Chrono R, graphite/desert grey, 2023
Kolo MONDRAKER Chrono R, graphite/desert grey, 2023
vyráběné velikosti
S: 395mm / M: 430mm / L: 470mm / XL: 520mm
S: 395mm / M: 430mm / L: 470mm / XL: 520mm
rám
Chrono 29 Stealth Alloy, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable Routing, Boost 12x148mm rear axle
Chrono 29 Stealth Alloy, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable Routing, Boost 12x148mm rear axle
vidlice
Fox 32 29 Float GRIP EVOL Rhythm, 100mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: remote 2pos Push-unlock, low-speed rebound, air preload, Fox single pull
Fox 32 29 Float GRIP EVOL Rhythm, 100mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: remote 2pos Push-unlock, low-speed rebound, air preload, Fox single pull
přehazovačka
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
řazení
Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Sram Trigger SX Eagle, 12s, X-Actuation 1:1
brzdové páčky
Sram Level, tooled reach adjust, lever pivot bushings
Sram Level, tooled reach adjust, lever pivot bushings
kliky
Truvativ Stylo 6K Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
Truvativ Stylo 6K Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
středové složení
Sram DUB BSA, sealed bearings, 73mm
Sram DUB BSA, sealed bearings, 73mm
řidítka
Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, 31.8mm barbore
představec
Onoff Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 60mm, size L: 80mm, size XL: 90mm
Onoff Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 60mm, size L: 80mm, size XL: 90mm
sedlovka
Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm
Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm
sedlo
Mondraker XC Series, steel rail
Mondraker XC Series, steel rail
náboj přední
Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
náboj zadní
Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts
Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts
řetěz
Sram SX Eagle, 12s, Powerlock
Sram SX Eagle, 12s, Powerlock
kazeta
Sram PG-1210, 11-50T, 12s
Sram PG-1210, 11-50T, 12s
dráty
CN round stainless steel
CN round stainless steel
ráfky
MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes
MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes
pláště
Maxxis Ikon 29x2.20, 60TPI, wire bead
Maxxis Ikon 29x2.20, 60TPI, wire bead
obj.c.
010.23009
010.23009
gripy
Onoff Twin, 1lock-on, 135mm
Onoff Twin, 1lock-on, 135mm
přední brzda
Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
zadní brzda
Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
převodník
34T, steel, X-Sync 2
34T, steel, X-Sync 2
patka k přehazovačce
Mondraker M068
Mondraker M068
