Popis produktu Elektrokolo MONDRAKER Crafty Carbon RR, carbon/orange, 2023

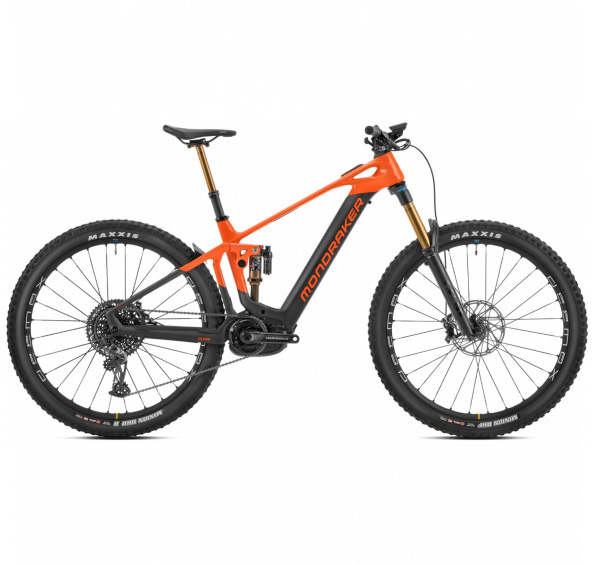

Kolo MONDRAKER Crafty Carbon RR, carbon/orange, 2023
vyráběné velikosti
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
rám
Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
vidlice
Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: high and low-speed compression, high and low-speed rebound, air preload
Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: high and low-speed compression, high and low-speed rebound, air preload
hlavové složení
Acros custom for 1-1/2
Acros custom for 1-1/2
přehazovačka
Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
řazení
Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click
Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click
brzdové páčky
Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
kliky
Race Face Aeffect ebike, 165mm
Race Face Aeffect ebike, 165mm
řidítka
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
představec
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
sedlovka
Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M/L size: 418.3x150mm, XL size: 475.1x175mm
Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M/L size: 418.3x150mm, XL size: 475.1x175mm
sedlo
FIZIK Terra Aidon X5 145mm
FIZIK Terra Aidon X5 145mm
náboj přední
Mavic, Boost 15x110mm, IS 6 bolts
Mavic, Boost 15x110mm, IS 6 bolts
náboj zadní
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
řetěz
Sram NX Eagle, 12s, Powerlock
Sram NX Eagle, 12s, Powerlock
kazeta
Sram XG-1275, 10-52T, 12s
Sram XG-1275, 10-52T, 12s
dráty
Mavic straight-pull double butted, contactless lacing
Mavic straight-pull double butted, contactless lacing
ráfky
Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes
Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes
pláště
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead, Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead, Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
obj.c.
010.23352
010.23352
gripy
Onoff Desert, 1lock-on, 135mm
Onoff Desert, 1lock-on, 135mm
tlumič
Fox Float-X LV Factory Kashima, 205x65mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Fox Float-X LV Factory Kashima, 205x65mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
přední brzda
Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
zadní brzda
Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
nastavení tlumiče
medium compression, medium rebound, air volume spacer 0.2
medium compression, medium rebound, air volume spacer 0.2
převodník
Sram X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD
Sram X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD
patka k přehazovačce
Mondraker M068
Mondraker M068
motor+baterie
Bosch Performance Line CX Cruise (25Km/h) Smart System , Bosch Powertube 750Wh, Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller
Bosch Performance Line CX Cruise (25Km/h) Smart System , Bosch Powertube 750Wh, Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller
