Popis produktu Kolo Mondraker F-PODIUM DC CARBON R Green/Carbon/Yellow, 2021

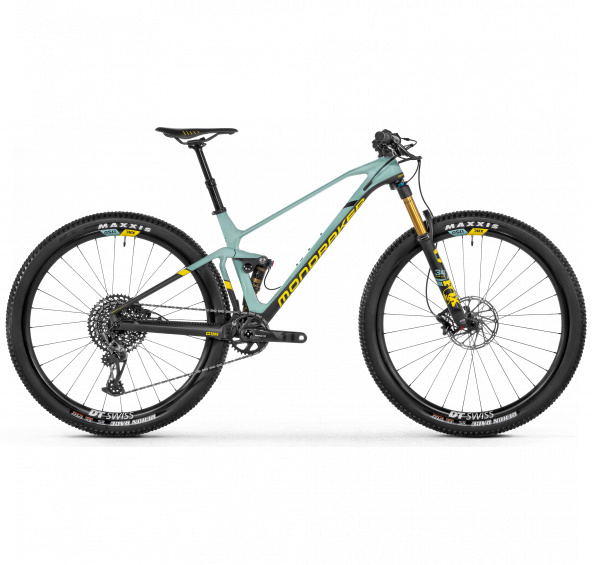

Kolo Mondraker F-PODIUM DC CARBON R Green/Carbon/Yellow, 2021
| vyráběné velikosti |
S 390mm / M 420mm / L 470mm / XL 510mm
|
| rám |
F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 100mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.
|
| vidlice |
Fox 34 29 Float FIT4 EVOL Step Cast Factory Kashima, 120mm, tapered steerer tube,15x110mm Boost axle, offset 44mm. Settings: remote lockout, compression micro-adjustment at low-speed, rebound, air preload
|
| hlavové složení |
Acros AZX-239 R1 Block Lock, ZS44/28.6 top, ZS56/40 bottom
|
| přehazovačka |
Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
|
| řazení |
Sram Trigger GX Eagle, 12s, X-Actuation 1:1
|
| brzdové páčky |
Sram Level TL, Direct Link actuation, tooled reach adjust, lever pivot bushings
|
| kliky a převodníky |
Sram X1 Carbon Eagle, Boost, DUB axle, Direct mount chain ring, S size: 170mm, M/L/XL size: 175mm
|
| středové složení |
Sram DUB BSA, sealed bearings, 73mm
|
| řidítka |
Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9 backsweep, 0 upsweep, 31.8mm barbore Onoff Desert, 1lock-on, 135mm, sizes: S/M L/XL
|
| představec |
MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5, length: sizes S/M: 50mm, size L: 60mm, size XL: 70mm
|
| sedlovka |
Onoff Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M/L/XL size 387x125mm
|
| sedlo |
Fizik Antares R7
|
| náboj přední |
DT 370, Boost 15x110mm, IS 6 bolts
|
| náboj zadní |
DT 370, Boost 12x148mm, 3 Pawl system, IS 6 bolts, MS freehub
|
| řetěz |
Sram GX Eagle, 12s, Powerlock
|
| kazeta |
Sram XG-1275, 10-50T, 12s
|
| dráty |
DT Champion, straightpull
|
| ráfky |
DT Swiss XRC1750 Carbon Spline 29, 30mm internal width, hookless, tubeless ready, 28 spokes
|
| pláště |
Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead
|
| tlumič |
Fox Float DPS SV EVOL Factory Kashima, 185x47,5mm. Settings: 2 position remote compression (open/lock), low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
|
| přední brzda |
Sram Level TL, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
|
| zadní brzda |
Sram Level TL, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
|
| plášť zadní |
Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead
|
| nastavení tlumiče |
Firm compression, light rebound, air volume spacer 0.2
|
| převodník |
34T, CNC-machined alloy, X-SYNC 2
|
| patka k přehazovačce | Sram UDH |
