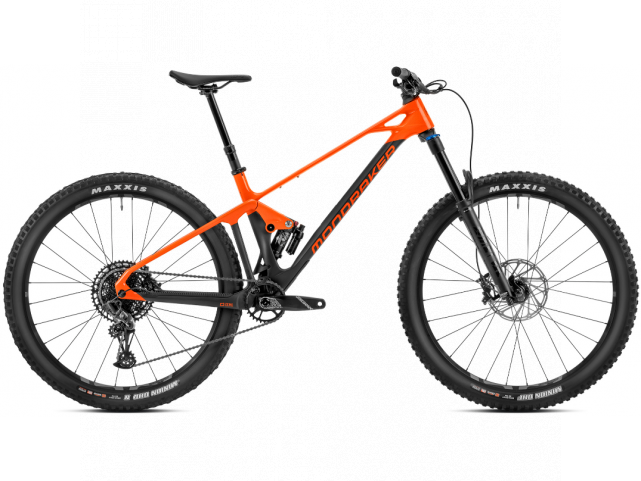

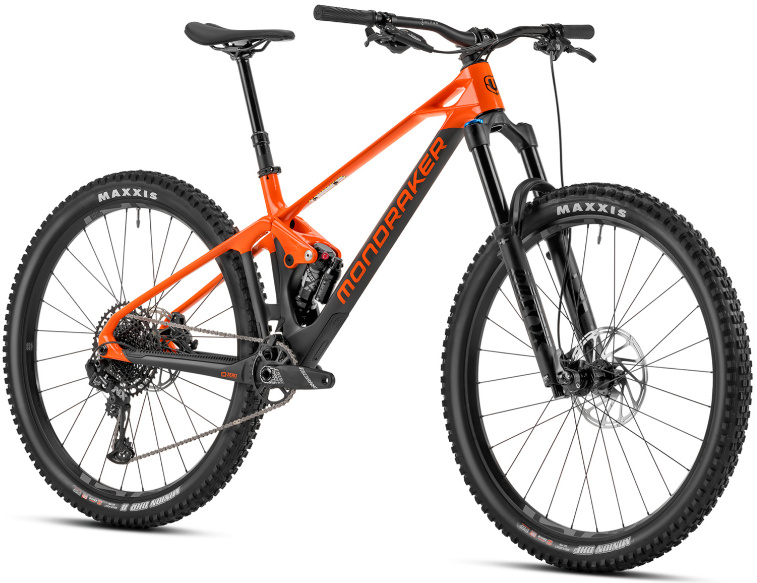

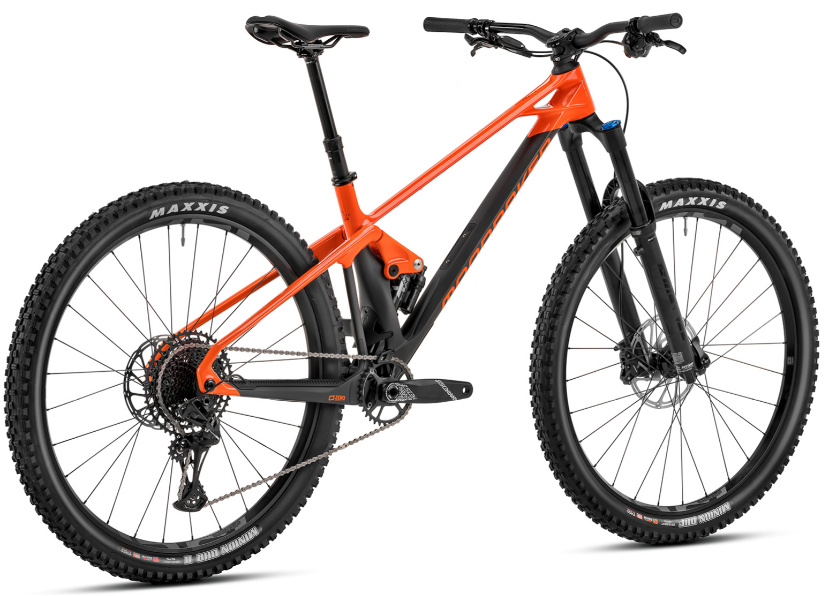

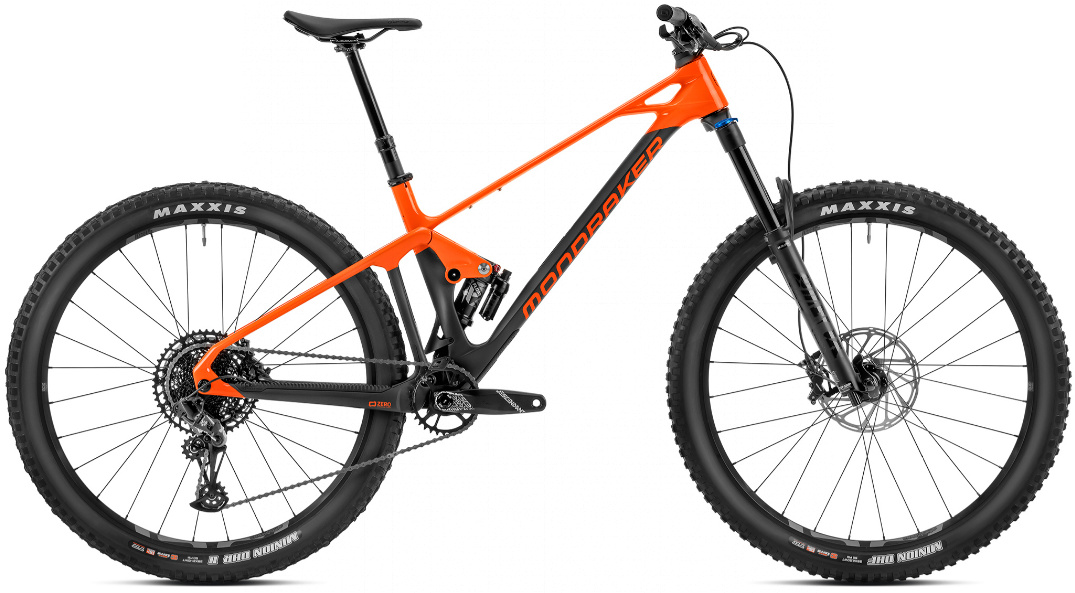

Kolo MONDRAKER Foxy Carbon R, carbon/orange, 2023
Kolo MONDRAKER Foxy Carbon R, carbon/orange, 2023
vyráběné velikosti
S: 380mm / M: 420mm / L: 450mm / XL: 500mm
S: 380mm / M: 420mm / L: 450mm / XL: 500mm
rám
Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, aluminium CSC upper link with carbon bridge, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry Kit.
Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, aluminium CSC upper link with carbon bridge, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry Kit.
vidlice
Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
hlavové složení
Acros custom for 1-1/2
Acros custom for 1-1/2
přehazovačka
Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
řazení
Sram Trigger NX Eagle, 12s, X-Actuation 1:1
Sram Trigger NX Eagle, 12s, X-Actuation 1:1
brzdové páčky
Sram G2 R, tool-free reach adjust
Sram G2 R, tool-free reach adjust
kliky
Truvativ Descendant 6K Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
Truvativ Descendant 6K Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
středové složení
Sram DUB BSA, sealed bearings, 73mm
Sram DUB BSA, sealed bearings, 73mm
řidítka
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
představec
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
pedály
SDG BEL-AIR 3.0, LPU foam, steel rails
SDG BEL-AIR 3.0, LPU foam, steel rails
sedlovka
Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
náboj přední
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
náboj zadní
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, Shimano freehub
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, Shimano freehub
řetěz
Sram NX Eagle, 12s, Powerlock
Sram NX Eagle, 12s, Powerlock
kazeta
Sram XG-1230, 11-50T, 12s
Sram XG-1230, 11-50T, 12s
dráty
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
ráfky
e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
pláště
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead / Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead / Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
obj.c.
010.23113
010.23113
gripy
Onoff Desert, 1lock-on, 135mm
Onoff Desert, 1lock-on, 135mm
tlumič
Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
přední brzda
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
zadní brzda
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
nastavení tlumiče
Light compression, light rebound, air volume spacer 0.6
Light compression, light rebound, air volume spacer 0.6
převodník
32T, steel, X-Sync 2
32T, steel, X-Sync 2
patka k přehazovačce
Sram UDH
Sram UDH
ostatní
*Optional Geometry kit: steering cups: +/- 1º
*Optional Geometry kit: steering cups: +/- 1º
