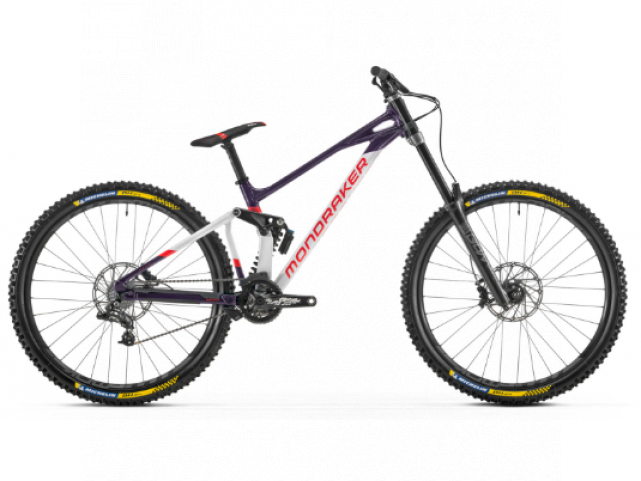

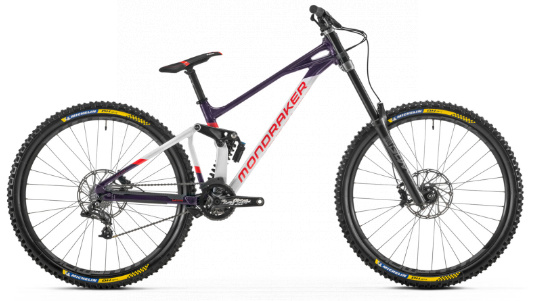

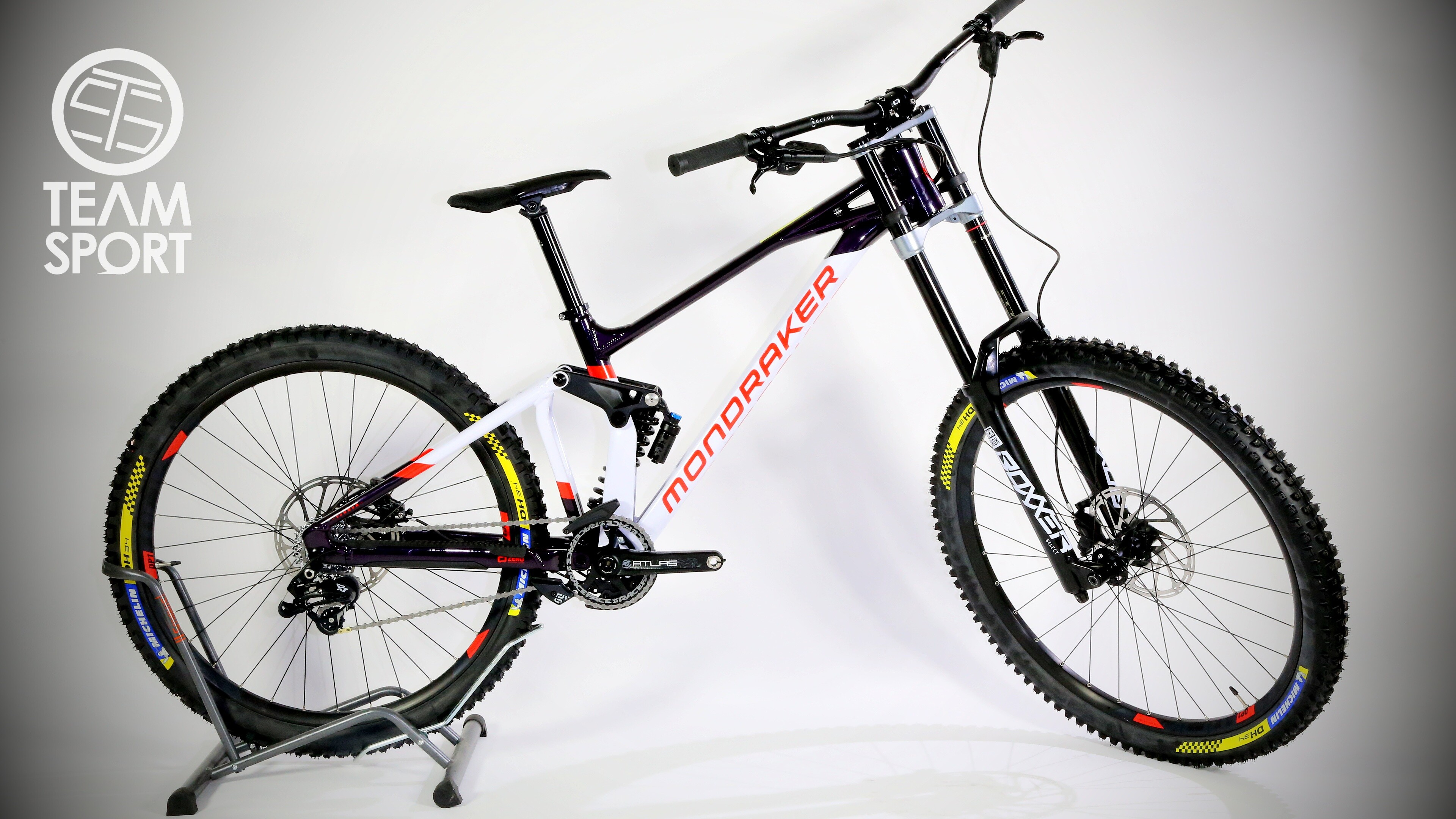

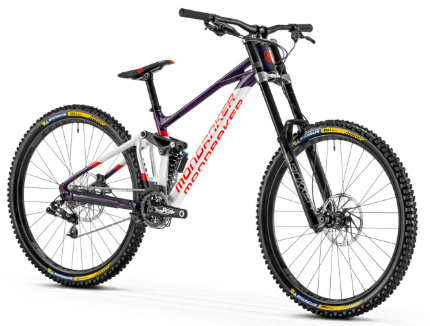

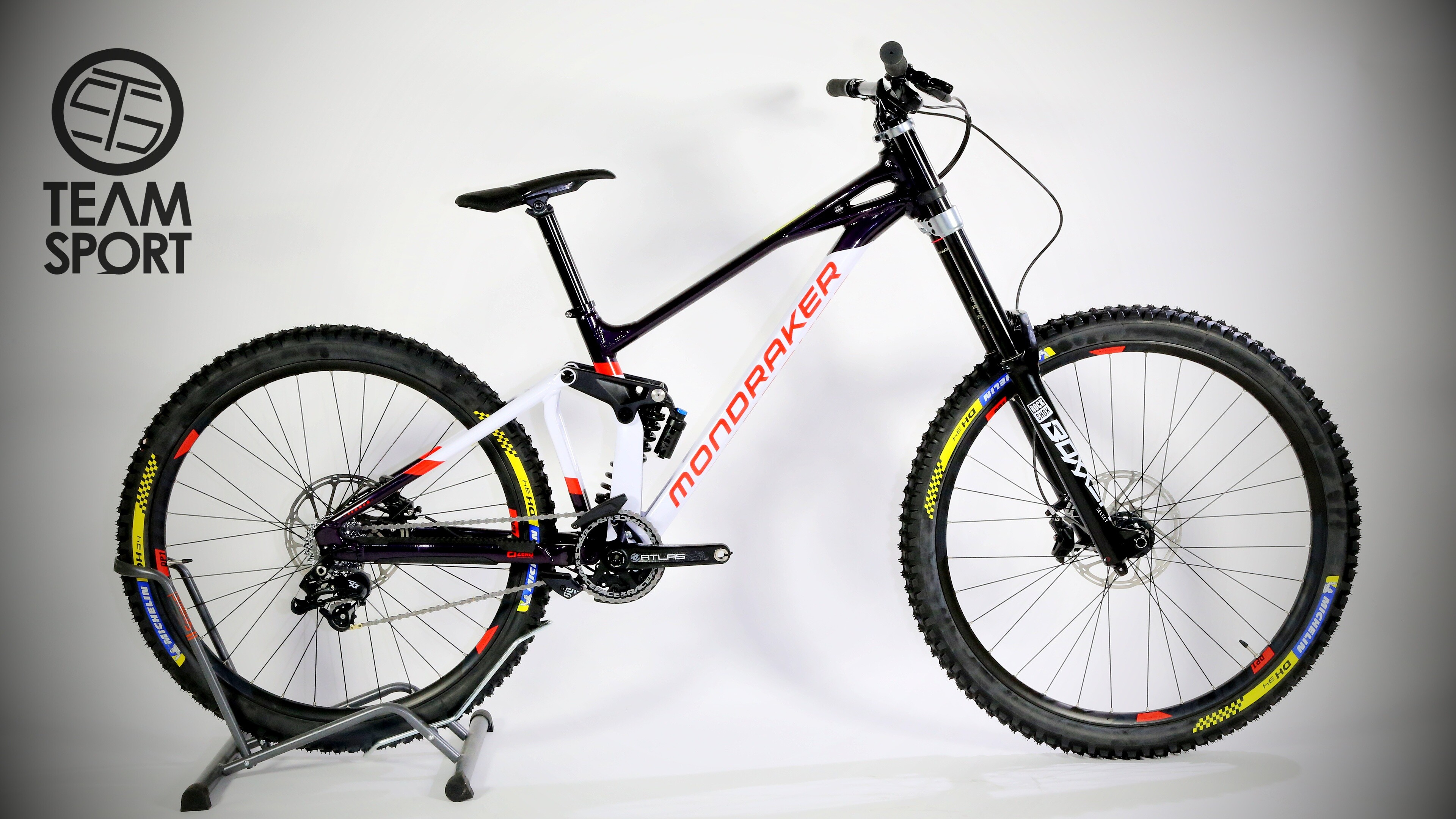

Kolo Mondraker Summum MX, dirty white/deep purple/flame red, 2022
Kolo Mondraker Summum MX, dirty white/deep purple/flame red, 2022
vyráběné velikosti
S / M / L / XL 29
S / M / L / XL 29
hmotnost
17,9 kg
17,9 kg
rám
Summum 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero suspension system, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, MAX. capacity dual raw Enduro bearings, HHG internal cable routing, ISCG 05. *Optional Geometry kit
Summum 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero suspension system, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, MAX. capacity dual raw Enduro bearings, HHG internal cable routing, ISCG 05. *Optional Geometry kit
vidlice
Rockshox Boxxer Select RC 29, 200mm, DebonAir, 1-1/8” steerer tube, Boost 20x110mm axle, offset 56mm. Settings: low-speed compression, rebound, air preload
Rockshox Boxxer Select RC 29, 200mm, DebonAir, 1-1/8” steerer tube, Boost 20x110mm axle, offset 56mm. Settings: low-speed compression, rebound, air preload
hlavové složení
Onoff Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm
Onoff Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm
přehazovačka
Sram X7, 9s, short cage, X-actuation 1:1
Sram X7, 9s, short cage, X-actuation 1:1
řazení
Sram trigger X5, 9s, X-actuation 1:1
Sram trigger X5, 9s, X-actuation 1:1
brzdové páčky
Sram Code R, tool-free reach adjust
Sram Code R, tool-free reach adjust
kliky
Race Face Chester, alloy, 165mm
Race Face Chester, alloy, 165mm
středové složení
Race Face BSA, 83mm
Race Face BSA, 83mm
řidítka
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

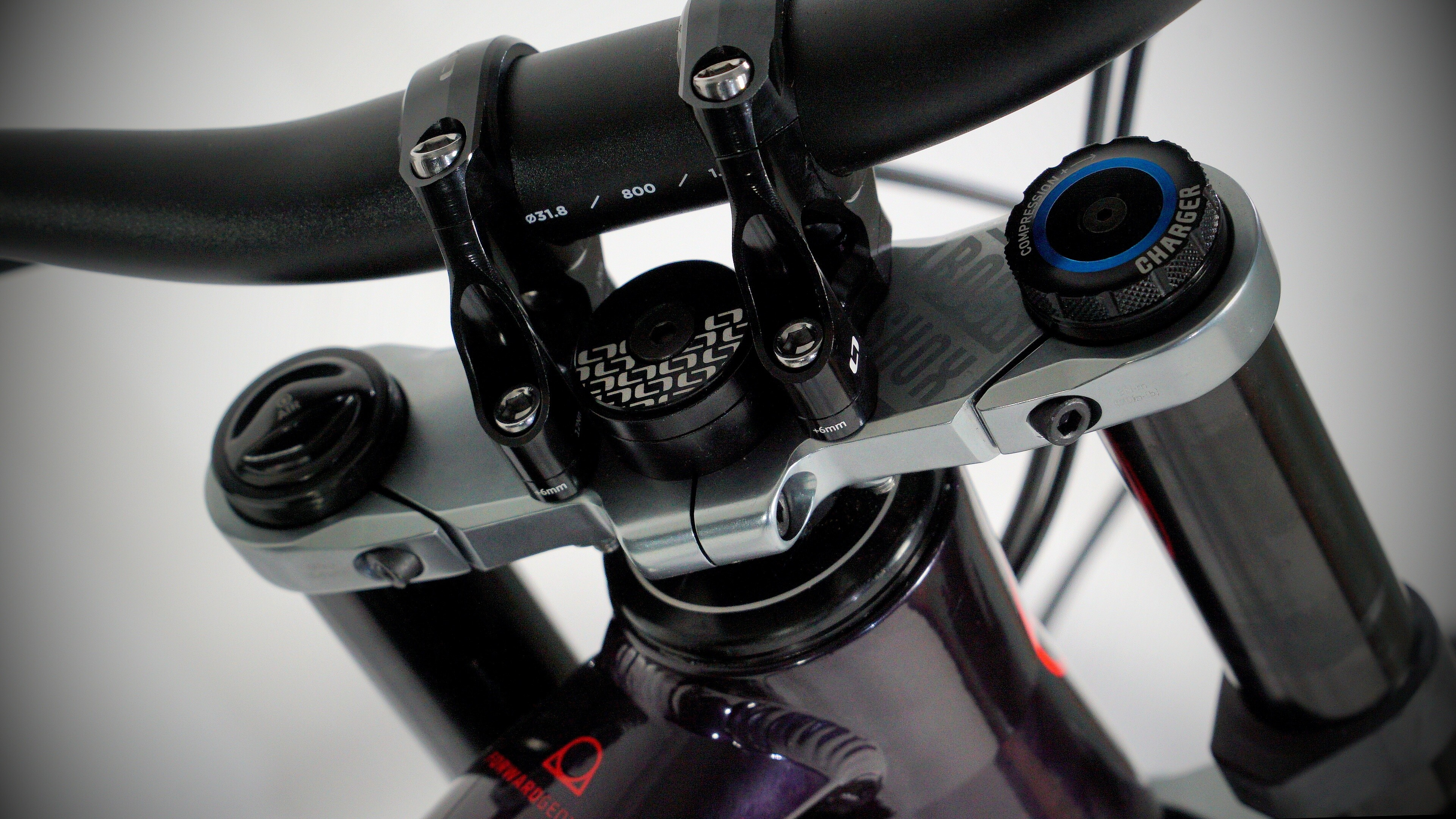

představec
Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
sedlovka
SDG Micro I-Beam SP-751 Alloy, diameter 31.6mm, length 300mm, micro-adjustment
SDG Micro I-Beam SP-751 Alloy, diameter 31.6mm, length 300mm, micro-adjustment
sedlo
SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides
SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides
náboj přední
MDK DA4371B-M20, Boost 20x110mm, IS 6 bolts
MDK DA4371B-M20, Boost 20x110mm, IS 6 bolts
náboj zadní
MDK DA4352B, 12x157mm, sealed bearings, IS 6 bolts
MDK DA4352B, 12x157mm, sealed bearings, IS 6 bolts
řetěz
Sram PC-951, 9s
Sram PC-951, 9s

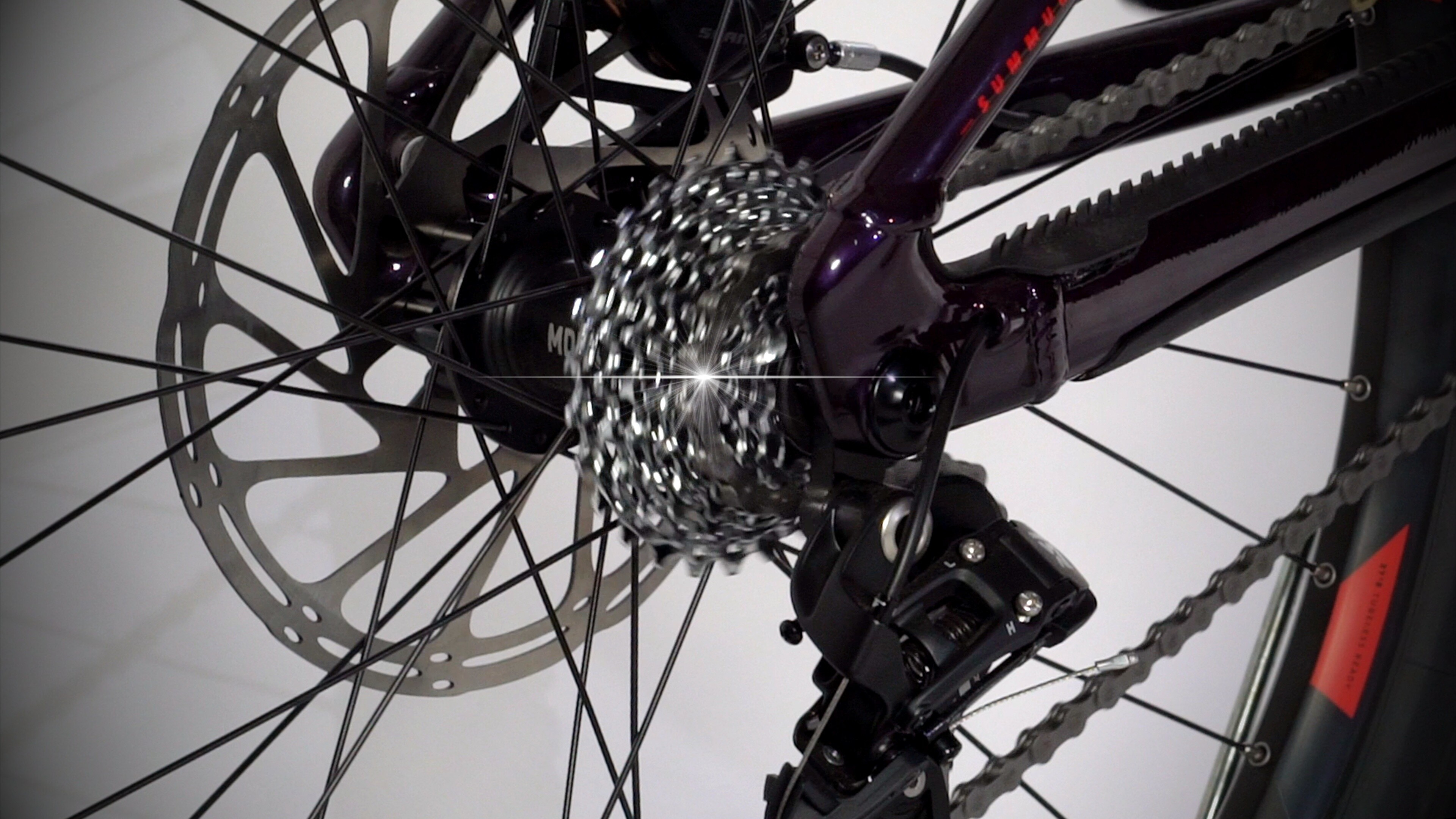

kazeta
Sram PG-950, 11-26T, 9s
Sram PG-950, 11-26T, 9s
dráty
CN stainless steel
CN stainless steel
ráfky
MDK-DP1 29, 27mm internal width, 32 holes
MDK-DP1 29, 27mm internal width, 32 holes
pláště
Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead,
Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead,
obj.c.
010.22084
010.22084
gripy
Onoff Diamond, 1lock-on, 135mm
Onoff Diamond, 1lock-on, 135mm

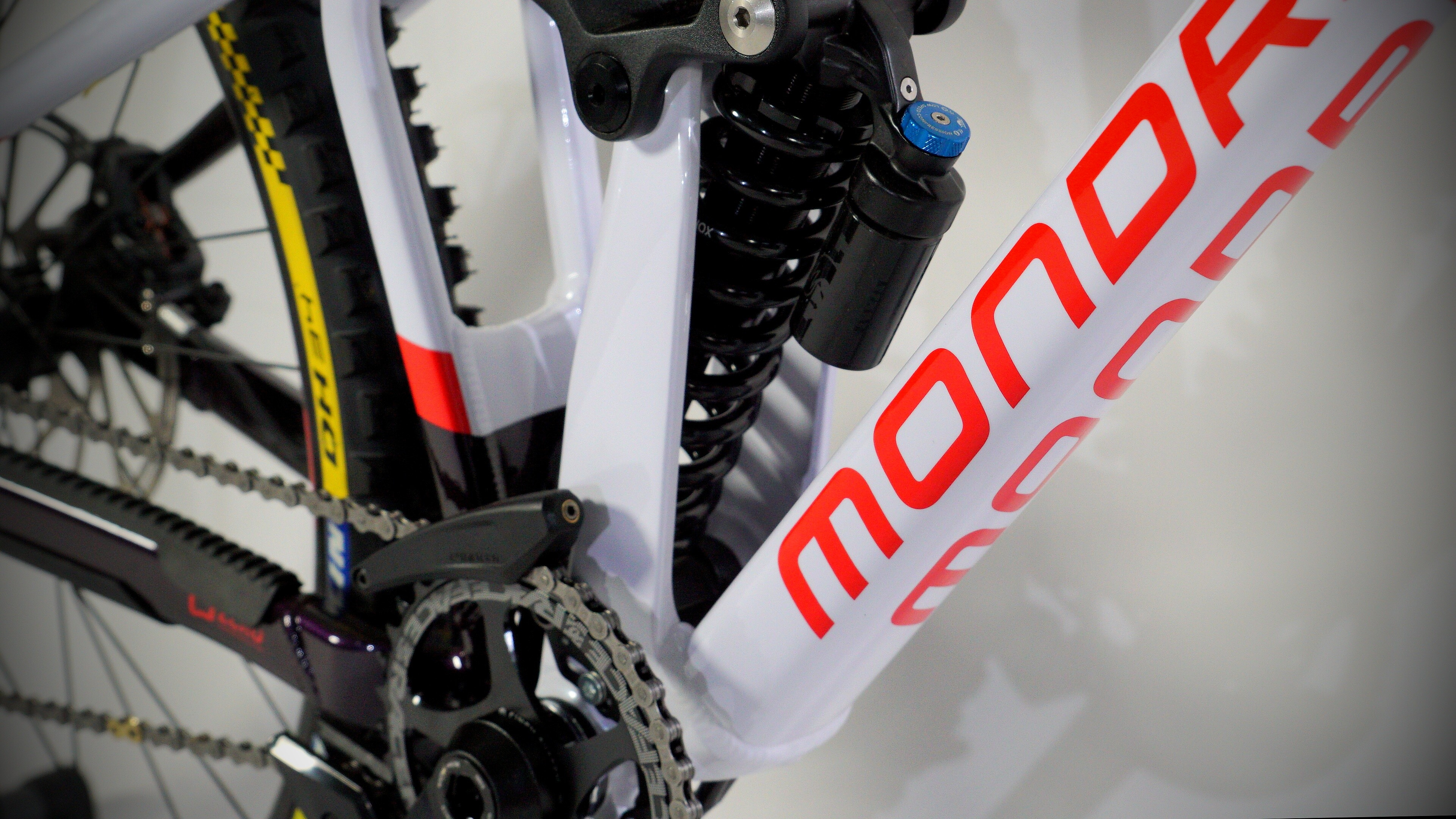

tlumič
Fox Van RC Performance, 225x70mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Fox Van RC Performance, 225x70mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
přední brzda
Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
zadní brzda
Sram Code R, oversized 4-piston caliper, Centerline 203mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Sram Code R, oversized 4-piston caliper, Centerline 203mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
nastavení tlumiče
Light compression, light rebound. Spring rate: S size 400 lbs, M size 400 lbs, L size 450 lbs, XL size 500 lbs
Light compression, light rebound. Spring rate: S size 400 lbs, M size 400 lbs, L size 450 lbs, XL size 500 lbs
převodník
36T, E.13 Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider
36T, E.13 Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider
patka k přehazovačce
Mondraker M068
Mondraker M068
ostatní
*Optional geometry kit: +-1º / +-2º headset cups
*Optional geometry kit: +-1º / +-2º headset cups
